GPS tracker

RiverCity Innovations Lynx LoRaWAN decoder and payload format

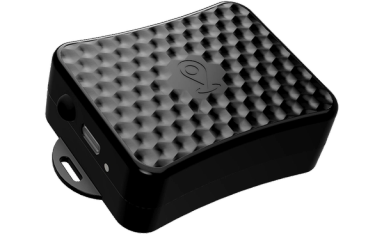

The RiverCity Innovations Lynx is a LoRaWAN GPS tracker that reports acceleration, GPS position and temperature. It is rated IP64, it runs on a replaceable 900mAh Li-Po (rechargeable) battery and it works from -20 to 60 °C.

RiverCity Innovations Lynx
Official decoderDatasheetProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 2

Payload (hex)

03 1B A1 77 F9 A4 FE F1 94 DF 26

Decoded (JSON)

{
  "latitudeDeg": 52.142455,
  "longitudeDeg": -106.627343,
  "inTrip": true,
  "fixFailed": false,
  "batV": 4,
  "direction": 314.8235294117647,
  "temperature": 19,
  "type": "position"
}
FieldValue
latitudeDeg52.142455
longitudeDeg-106.627343
inTriptrue
fixFailedfalse
batV4
direction314.8235294117647
temperature19
typeposition

Specifications

Manufacturer
RiverCity Innovations
Model
Lynx
Type
GPS tracker
Measures
acceleration, GPS position, temperature
Protection
IP64
Battery
900mAh Li-Po (rechargeable) (replaceable)
Operating temperature
-20 … 60 °C
LoRaWAN regions
EU863-870, US902-928, AU915-928

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.
