Level and distance sensor

Milesight EM400-MUD LoRaWAN decoder and payload format

The Milesight EM400-MUD is a LoRaWAN level and distance sensor that reports temperature, acceleration and distance. It is rated IP67, it runs on a replaceable ER26500 Li-SoCl2 battery*2 battery and it works from -30 to 70 °C.

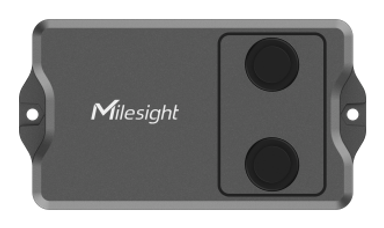

Milesight EM400-MUD
Official decoderDatasheetPartner page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 85

Payload (hex)

01 75 5C 03 67 01 01 04 82 44 08 05 00 01

Decoded (JSON)

{
  "battery": 92,
  "temperature": 25.7,
  "distance": 2116,
  "position": "tilt"
}
FieldValue
battery92
temperature25.7
distance2116
positiontilt

Specifications

Manufacturer
Milesight
Model
EM400-MUD
Type
Level and distance sensor
Measures
temperature, acceleration, distance
Protection
IP67
Battery
ER26500 Li-SoCl2 battery*2 (replaceable)
Operating temperature
-30 … 70 °C
LoRaWAN regions
EU863-870, US902-928, AU915-928, AS923, CN470-510, KR920-923, IN865-867, RU864-870

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.
