Pressure sensor

Decentlab DL-PR36CTD LoRaWAN decoder and payload format

The Decentlab DL-PR36CTD is a LoRaWAN pressure sensor that reports pressure, temperature and electrical conductivity. It is rated IP67, it runs on a replaceable 2 C alkaline battery and it works from -20 to 50 °C.

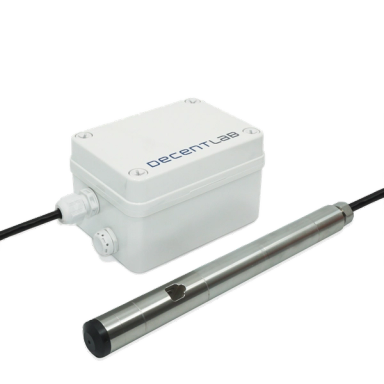

Decentlab DL-PR36CTD
Official decoderDatasheetPartner page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 1

Payload (hex)

02 0A 17 00 03 80 07 97 86 97 81 80 06 0C 2B

Decoded (JSON)

{
  "battery_voltage": {
    "displayName": "Battery voltage",
    "unit": "V",
    "value": 3.115
  },
  "device_id": 2583,
  "electrical_conductivity": {
    "displayName": "Electrical conductivity",
    "unit": "mS⋅cm⁻¹",
    "value": 0.005859375
  },
  "pressure": {
    "displayName": "Pressure",
    "unit": "bar",
    "value": 0.0008544921875
  },
  "protocol_version": 2,
  "temperature_electronics": {
    "displayName": "Temperature (electronics)",
    "unit": "°C",
    "value": 23.5234375
  },
  "temperature_pt1000": {
    "displayName": "Temperature (PT1000)",
    "unit": "°C",
    "value": 23.50390625
  }
}
FieldValue
battery_voltage3.115 V
device_id2583
electrical_conductivity0.005859375 mS⋅cm⁻¹
pressure0.0008544921875 bar
protocol_version2
temperature_electronics23.5234375 °C
temperature_pt100023.50390625 °C

Specifications

Manufacturer
Decentlab
Model
DL-PR36CTD
Type
Pressure sensor
Measures
pressure, temperature, electrical conductivity
Protection
IP67
Battery
2 C alkaline (replaceable)
Operating temperature
-20 … 50 °C
LoRaWAN regions
EU863-870, AS923, US902-928, AU915-928

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.
