Decentlab DL-ATM22 LoRaWAN decoder and payload format

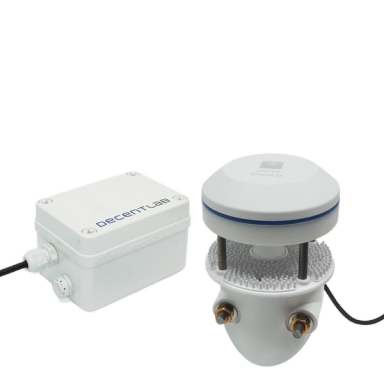

The Decentlab DL-ATM22 is a LoRaWAN weather station that reports wind speed, wind direction, temperature and tilt. It is rated IP67, it runs on a replaceable 2 C alkaline battery and it works from -20 to 50 °C.
Payload format
An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.
Example 1 · fPort 1
Payload (hex)
02 08 C9 00 03 80 09 81 2B 80 14 81 08 80 02 7F E8 80 08 80 04 0B F5Decoded (JSON)
{
"air_temperature": {
"displayName": "Air temperature",
"unit": "°C",
"value": 26.4
},
"battery_voltage": {
"displayName": "Battery voltage",
"unit": "V",
"value": 3.061
},
"device_id": 2249,
"east_wind_speed": {
"displayName": "East wind speed",
"unit": "m⋅s⁻¹",
"value": 0.04
},
"maximum_wind_speed": {
"displayName": "Maximum wind speed",
"unit": "m⋅s⁻¹",
"value": 0.2
},
"north_wind_speed": {
"displayName": "North wind speed",
"unit": "m⋅s⁻¹",
"value": 0.08
},
"protocol_version": 2,
"wind_direction": {
"displayName": "Wind direction",
"unit": "°",
"value": 29.9
},
"wind_speed": {
"displayName": "Wind speed",
"unit": "m⋅s⁻¹",
"value": 0.09
},
"x_orientation_angle": {
"displayName": "X orientation angle",
"unit": "°",
"value": 0.2
},
"y_orientation_angle": {
"displayName": "Y orientation angle",
"unit": "°",
"value": -2.4
}
}| Field | Value |
|---|---|
| air_temperature | 26.4 °C |
| battery_voltage | 3.061 V |
| device_id | 2249 |
| east_wind_speed | 0.04 m⋅s⁻¹ |
| maximum_wind_speed | 0.2 m⋅s⁻¹ |
| north_wind_speed | 0.08 m⋅s⁻¹ |
| protocol_version | 2 |
| wind_direction | 29.9 ° |
| wind_speed | 0.09 m⋅s⁻¹ |
| x_orientation_angle | 0.2 ° |
| y_orientation_angle | -2.4 ° |
Specifications
- Manufacturer
- Decentlab
- Model
- DL-ATM22
- Type
- Weather station
- Measures
- wind speed, wind direction, temperature, tilt
- Protection
- IP67
- Battery
- 2 C alkaline (replaceable)
- Operating temperature
- -20 … 50 °C
- LoRaWAN regions
- EU863-870, AS923, US902-928, AU915-928
Connect it to Cloud Studio IoT
- 1
Register the device in your network server
Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.
- 2
Apply the decoder
In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.
- 3
Connect the network server to Cloud Studio IoT
Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.
- 4
Build dashboards and alarms
The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.
