The Cloud Studio platform features a series of specific widgets for branch monitoring, energy consumption, power history, consumption, weather data, and more, for use in dashboards customizable by the end user.

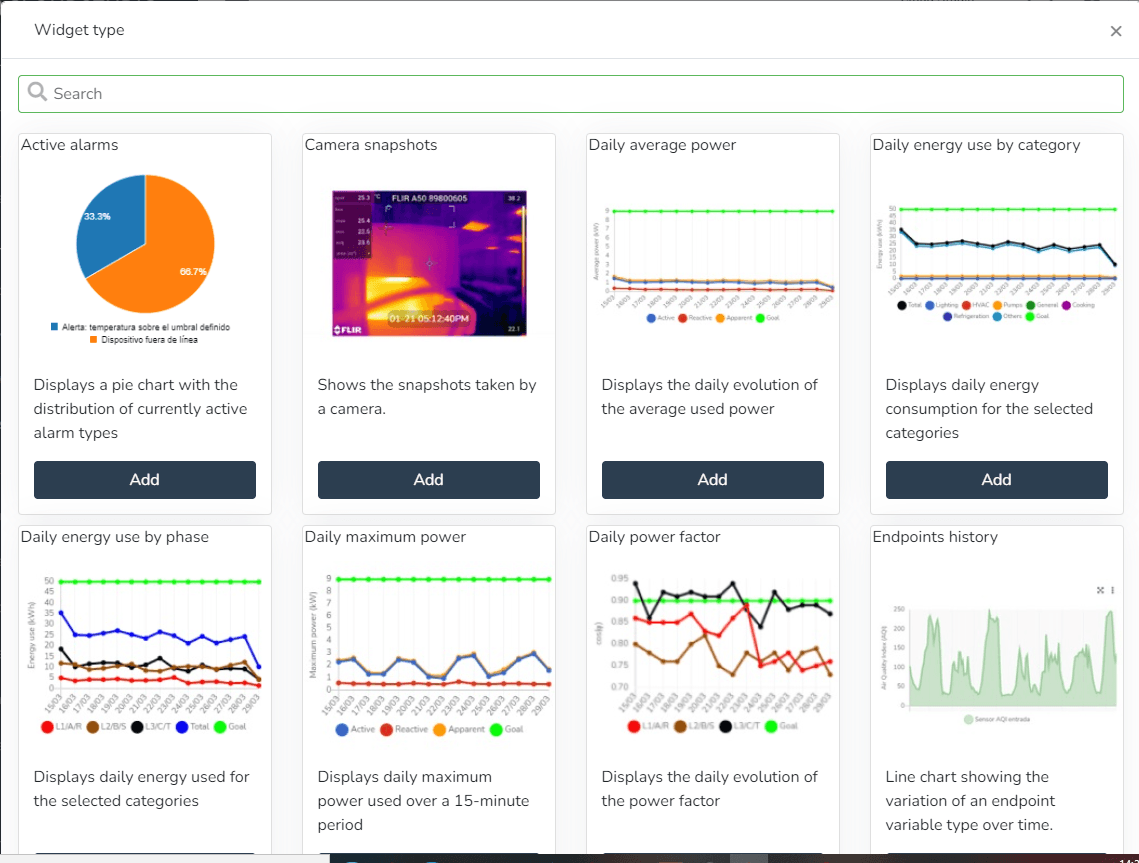

Widget type dialog with search and cards for alarm, camera and energy widgets

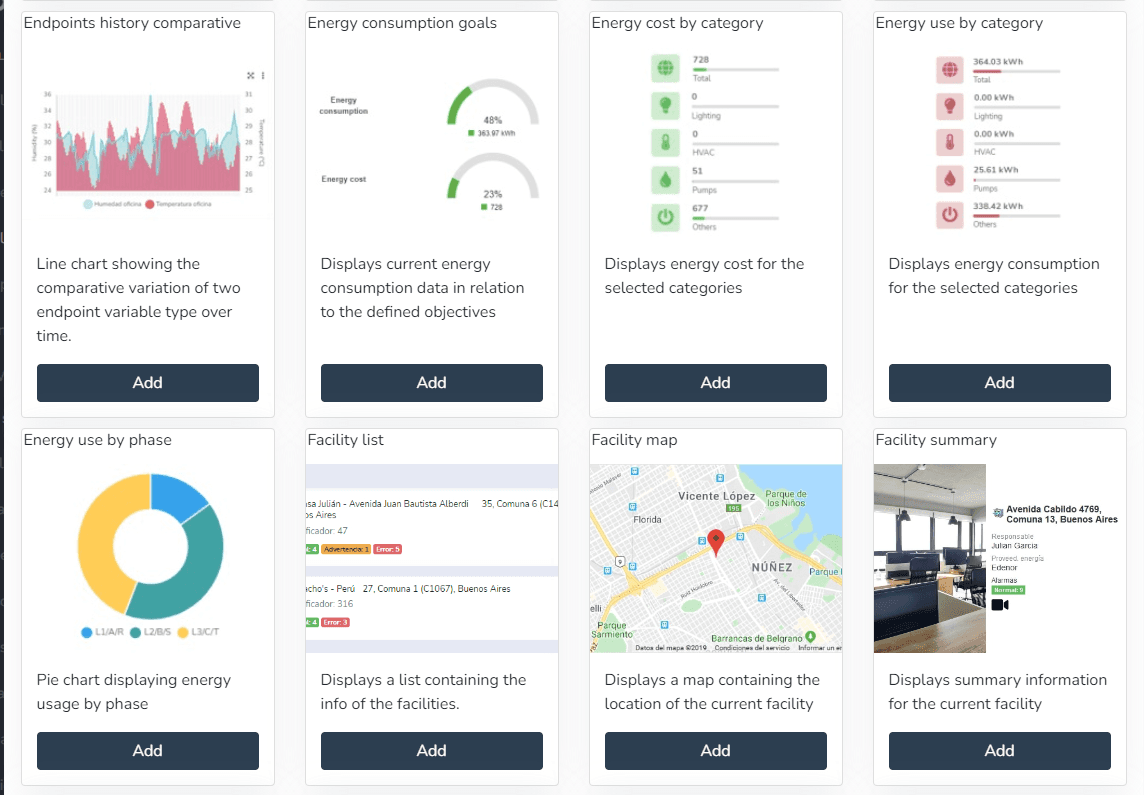

Catalog of energy and facility widgets, each with a preview and Add button

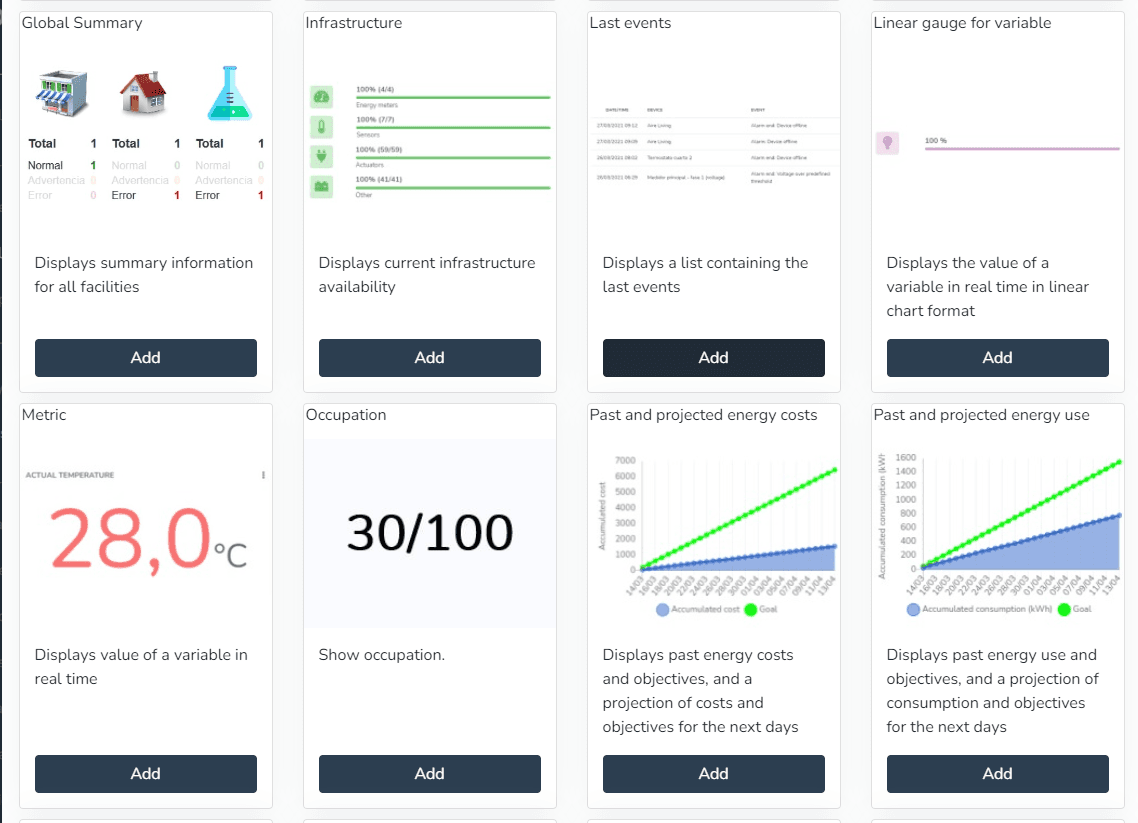

Widget catalog with summary, infrastructure, events, metric, occupancy and projected energy widgets

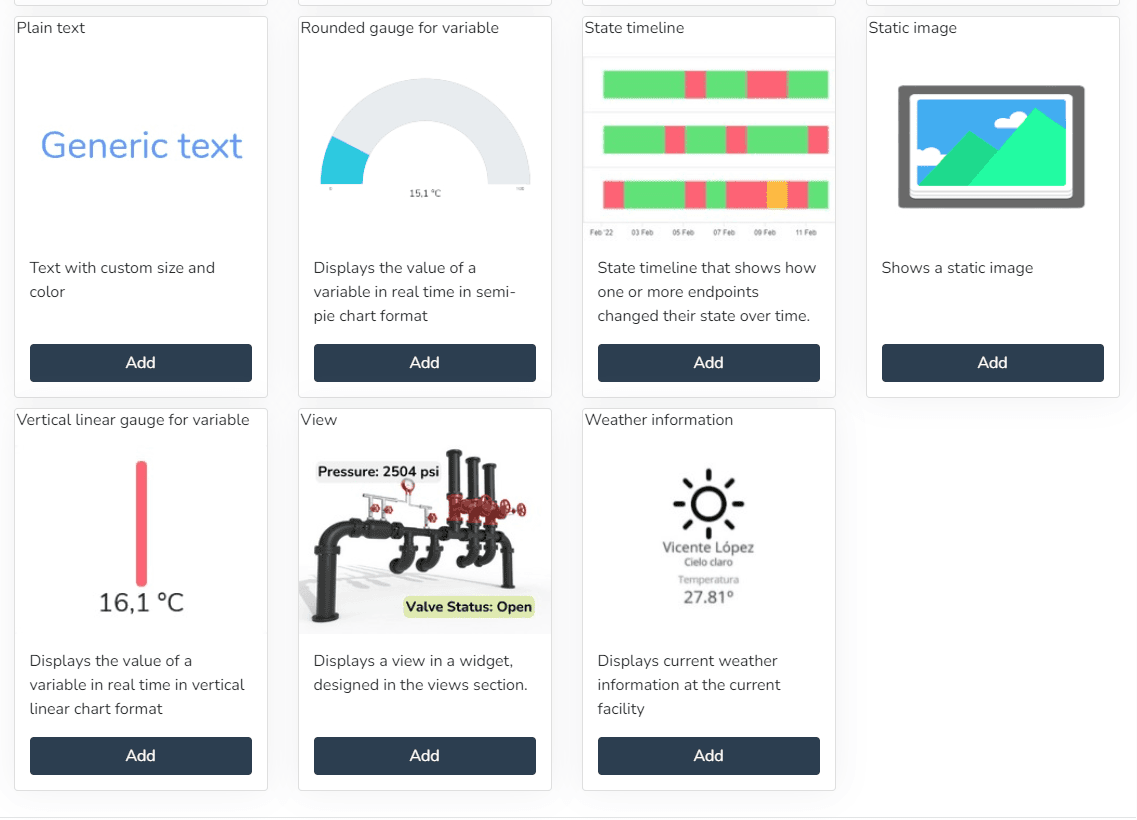

Widget catalog with text, gauge, state timeline, image, view and weather widgets

  • Active alarms (Displays a pie chart with the distribution of currently active alarm types)
  • Past and projected energy consumption (Displays past energy consumption and targets, as well as a projection of consumption and targets for the coming days)
  • Energy consumption by category (Displays energy consumption for selected categories)
  • Energy consumption by phase (Pie chart showing energy consumption by phase)
  • Daily energy consumption by category (Displays daily energy consumption for selected categories)
  • Daily consumption by phase (Displays daily consumption by phase for selected categories)
  • Energy cost by category (Displays energy cost for selected categories)
  • Past and projected energy costs (Displays past energy costs and targets, as well as a projection of costs and targets for the coming days)
  • Weather status (Displays the weather status at the current facility)
  • Daily power factor (Displays the daily evolution of the power factor)
  • Infrastructure (Displays the current availability of the infrastructure)
  • Facility map (Displays a map containing the location of the current facility)
  • Energy consumption targets (Displays energy consumption information relative to defined targets)
  • Daily maximum power (Displays the maximum daily power used in a 15-minute period)
  • Daily average power (Displays the daily evolution of the power used)
  • Facility summary (Displays summary information for the current facility)
  • Global summary (Displays summary information for all facilities)
  • Latest events (Displays a list with the latest events)
  • Camera snapshots (Displays snapshots taken by a camera)
  • Endpoint history (Line chart showing the variation of an endpoint variable type over time)
  • Comparative endpoint history (Line chart showing the comparative variation of two endpoint variable types over time)
  • Facility list (Displays a list containing facility information)
  • World summary (Displays summary information for all facilities)
  • Infrastructure (Displays the current availability of the infrastructure)
  • Latest events (Displays a list containing the latest items)
  • Linear gauge for variable (Displays the value of a variable in real time as a linear chart)
  • Metric (Displays the value of a variable in real time)
  • Occupancy (Displays the occupancy)
  • Plain text (Displays text with custom colors and formatting)
  • Rounded gauge for variable (Displays the value of a variable in real time as a semicircular chart)
  • State timeline (State timeline showing how one or more endpoints changed their state over time.)
  • Static image (Displays a static image)
  • Vertical linear indicator for variable (Displays the value of a variable in real time as a vertical linear chart)
  • View (Displays a view in a widget, designed in the views section)
  • Weather information (Displays the current weather information at the current facility)

Active Alarms:

The user can use this Widget to create a pie chart with the distribution of currently active alarm types.

Pie chart preview and button to add the Active Alarms widget

Active Alarms widget settings with title, navigation, margins and scope

Camera Snapshots:

The user can use this Widget to view snapshots taken by a camera.

Preview and button to add the Camera Snapshots widget

Camera Snapshots widget settings with endpoint and timestamp position

Daily Average Power:

The user can use this Widget to view the daily evolution of the power used.

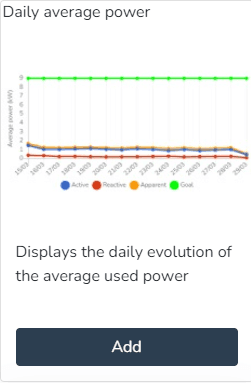

Preview and button to add the Daily Average Power widget

Daily Average Power widget settings with title, margins and scope

Daily Energy Consumption by Category:

The user can use this Widget to view the daily energy consumption for selected categories.

Daily Energy Consumption by Category widget settings with scope and metering categories

Daily Energy Consumption by Phase:

The user can use this Widget to view the daily energy used for selected categories.

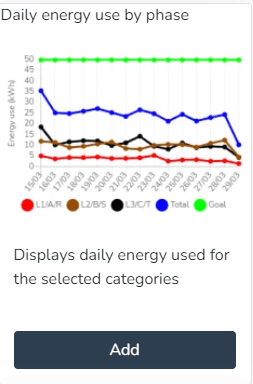

Preview and button to add the Daily Energy Consumption by Phase widget

Daily Energy Consumption by Phase widget settings with scope, summation and metering categories

Daily Maximum Power:

The user can use this Widget to view the maximum daily power used in a 15-minute period.

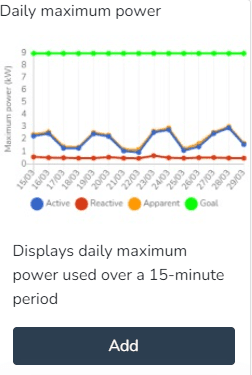

Preview and button to add the Daily Maximum Power widget

Daily Maximum Power widget settings with title, navigation and margin fields

Daily Power Factor:

The user can use this Widget to view the daily evolution of the power factor.

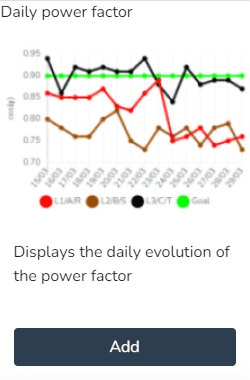

Preview and button to add the Daily Power Factor widget

Daily Power Factor:

The user can use this Widget to view the daily evolution of the power factor.

Daily Power Factor widget settings with title, margins and scope

Endpoint History:

The user can use this Widget to generate a line chart showing the variation of an endpoint variable type over time.

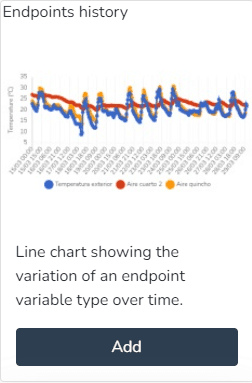

Preview and button to add the Endpoint History widget

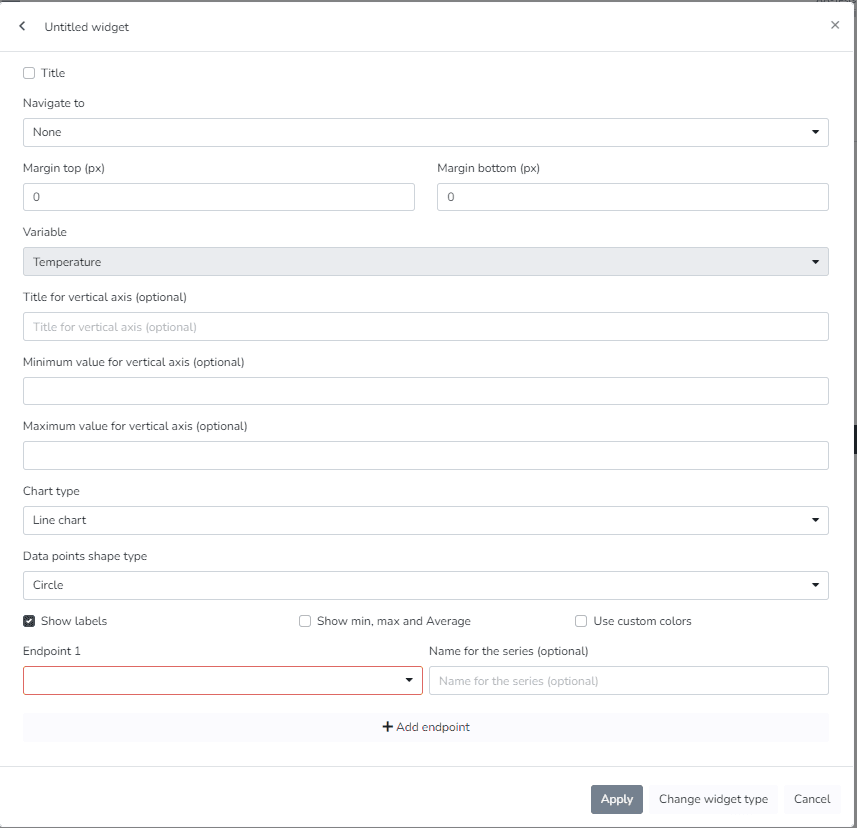

Endpoint History widget settings with variable, vertical axis, chart type and endpoints

Comparative Endpoint History:

The user can use this Widget to generate a line chart showing the comparative variation of two endpoint variable types over time.

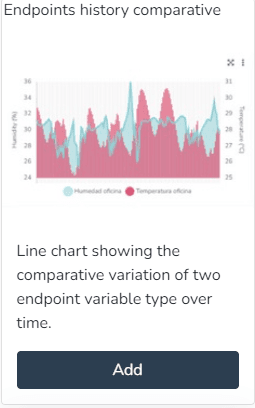

Preview and button to add the Comparative Endpoint History widget

Comparative Endpoint History widget settings with left and right axis tabs

Energy Consumption Targets:

The user can use this Widget to view current energy consumption data relative to defined targets.

Preview and button to add the Energy Consumption Targets widget

Energy Consumption Targets widget settings with title, margins and scope

Energy Consumption Targets:

The user can use this Widget to view the energy cost for selected categories.

Preview and button to add the Energy Cost by Category widget

Energy Consumption Targets widget settings with scope and metering categories

Energy Consumption by Category:

The user can use this Widget to view energy consumption for selected categories.

Preview and button to add the Energy Consumption by Category widget

Energy Consumption by Category widget settings with scope and metering categories

Energy Consumption by Phase:

The user can use this Widget to view a pie chart showing energy usage by phase.

Preview and button to add the Energy Consumption by Phase widget

Energy Consumption by Phase widget settings with scope, summation and metering categories

Energy Consumption by Phase:

The user can use this Widget to view a list containing facility information.

Preview and button to add the Facility list widget

Facility list widget settings with a facilities selector and Default option

Facility Map:

The user can use this Widget to view a map containing the location of the current facility.

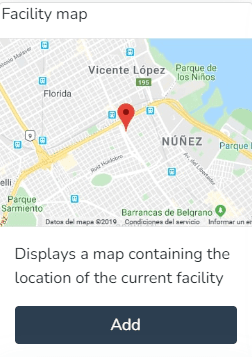

Preview and button to add the Facility Map widget

Facility Map widget settings with facility selector, commercial pins and satellite view

Facility Summary:

The user can use this Widget to view summary information for the current facility.

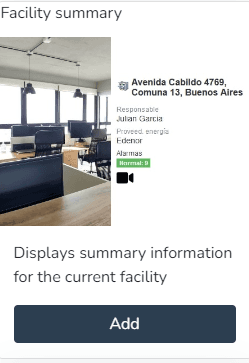

Preview and button to add the Facility Summary widget

Facility Summary widget settings with title, navigation and margin fields

World Summary:

The user can use this Widget to view summary information for all facilities.

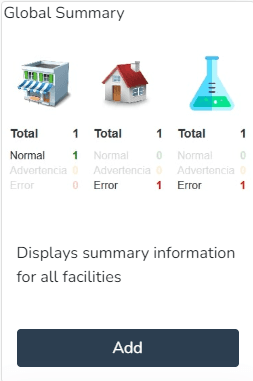

Card for the World Summary widget with a preview and Add button

World Summary widget settings with title, navigation and margin fields

Infrastructure:

The user can use this Widget to view the current availability of the infrastructure.

Preview and button to add the Infrastructure widget

Infrastructure widget settings with title, navigation, margins and scope

Latest Events:

The user can use this Widget to view a list containing the latest events.

Preview and button to add the Latest Events widget

Latest Events widget settings with title, navigation, margins and scope

Linear Gauge for Variable:

The user can use this Widget to view the value of a variable in real time as a linear chart.

Preview and button to add the Linear Gauge for Variable widget

Configuration form for the linear gauge for variable widget

Metric:

The user can use this Widget to view the value of a variable in real time.

Preview and button to add the Metric widget

Metric widget settings with variable, endpoint, default color and colors by range

Occupancy:

The user can use this Widget to view the occupancy.

Preview and button to add the Occupancy widget

Occupancy widget settings with statuses, sensors and a pie chart option

Past and Projected Energy Costs:

The user can use this Widget to view past energy costs and targets, and a projection of costs and targets for the coming days.

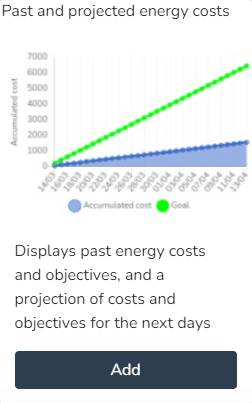

Widget card for past and projected energy costs with Add button

Past and Projected Energy Costs widget settings with title, margins and scope

Past and Projected Energy Consumption:

The user can use this Widget to view past energy consumption and targets, and a projection of consumption and targets for the coming days.

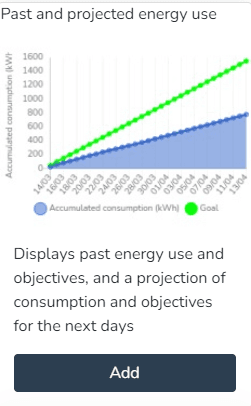

Card for the past and projected energy use widget with the Add button

Past and Projected Energy Consumption widget settings with title, margins and scope

Plain Text:

The user can use this Widget to enter text with custom colors and sizes.

Preview and button to add the Plain Text widget

Plain Text widget settings with text, language, font size and color fields

Card for the Rounded gauge for variable widget with preview and Add button

Gauge widget settings with minimum, maximum, variable, endpoint and colors by range

State Timeline:

The user can use this Widget to view a state timeline showing how one or more endpoints changed their state over time.

Preview and button to add the State Timeline widget

Configuration form for a state timeline widget

Static Image:

The user can use this Widget to view a static image.

Preview and button to add the Static Image widget

Static Image widget settings with an image file selector

Vertical Linear Indicator for Variable:

The user can use this Widget to view the value of a variable in real time as a vertical linear chart.

Card for the vertical linear gauge for variable widget with add button

Vertical Linear Indicator settings with minimum, maximum, endpoint and colors by range

Views:

The user can use this Widget to view a view in a widget, designed in the views section.

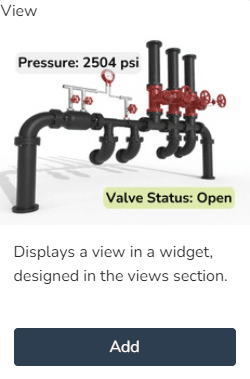

Preview and button to add the Views widget

Views widget configuration form with the field to select a view

Weather Information:

The user can use this Widget to view the current weather information at the current facility.

Preview and button to add the Weather Information widget

Weather Information widget settings with title, navigation and margin fields

Dashboard Widgets (Monitor)

In the monitor, the dashboard can be configured to the client's needs using any combination of the available widgets:

Endpoint History Widget:

Line chart showing the variation of an endpoint variable type over time. In endpoint history charts, the user can enter minimum and maximum values to define the Y-axis ranges, as well as modify the variable names associated with the Y-axis titles.

Dashboard

Endpoint history chart with one series and a custom Y-axis title

  • The user can edit the minimum and maximum values that define the Y-axis ranges of the charts.

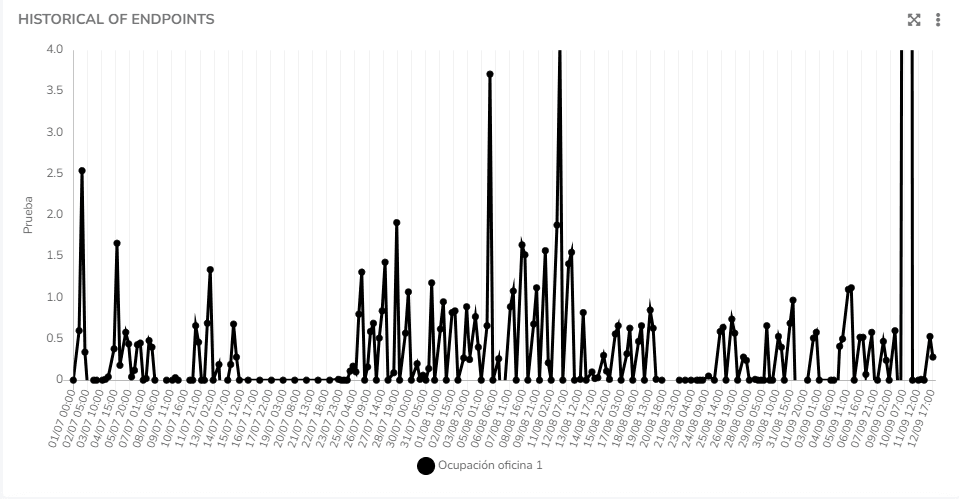

Y-axis minimum and maximum values in a history chart

  • The user can modify the Y-axis titles (instead of displaying the variable type names).

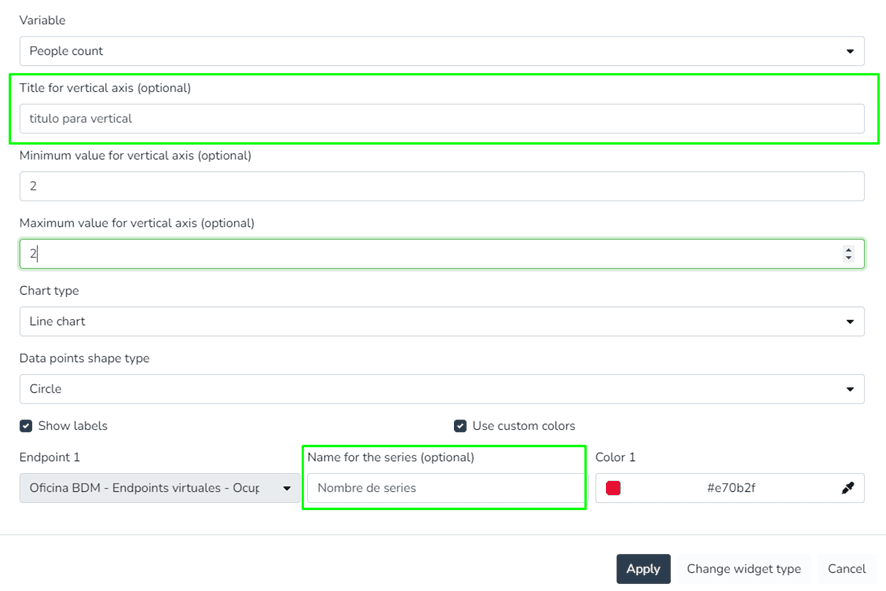

Widget settings with the vertical axis title and series name fields highlighted

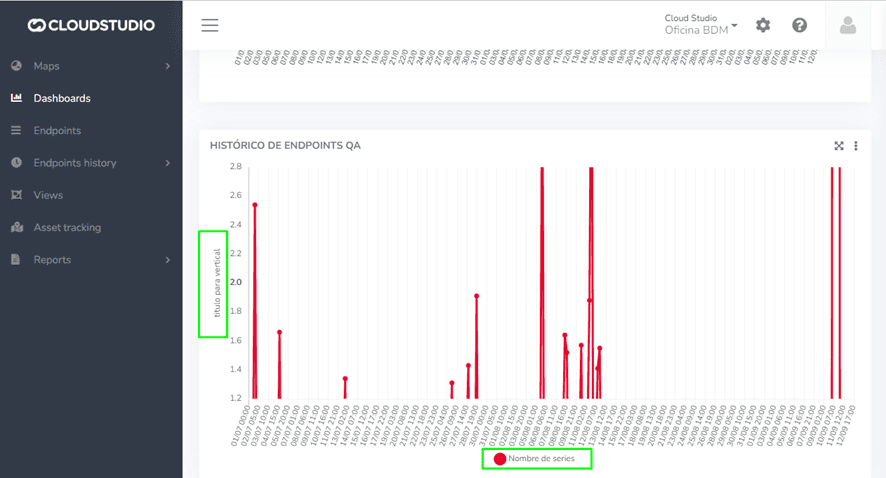

Endpoint history chart with the vertical axis title and series name highlighted

  • The user can view the tooltips of history charts, which display all data points associated with an X position.

History chart tooltip showing the data points at one X position

Comparative Endpoint History Widget:

Endpoint history charts where the user can enter minimum and maximum values to define the Y-axis ranges, as well as modify the variable names associated with the Y-axis titles.

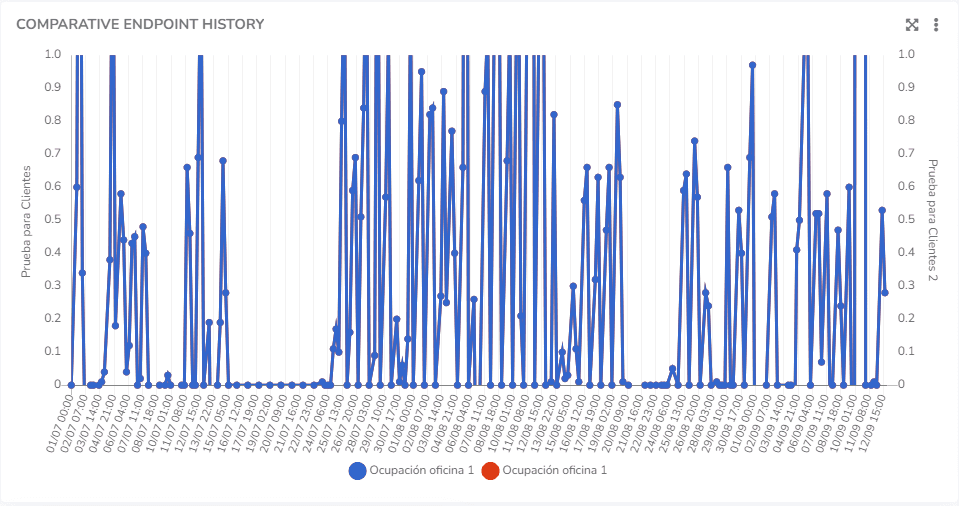

Comparative Endpoint History chart with two Y axes and custom axis titles

The user can edit the minimum and maximum values that define the Y-axis ranges of the charts.

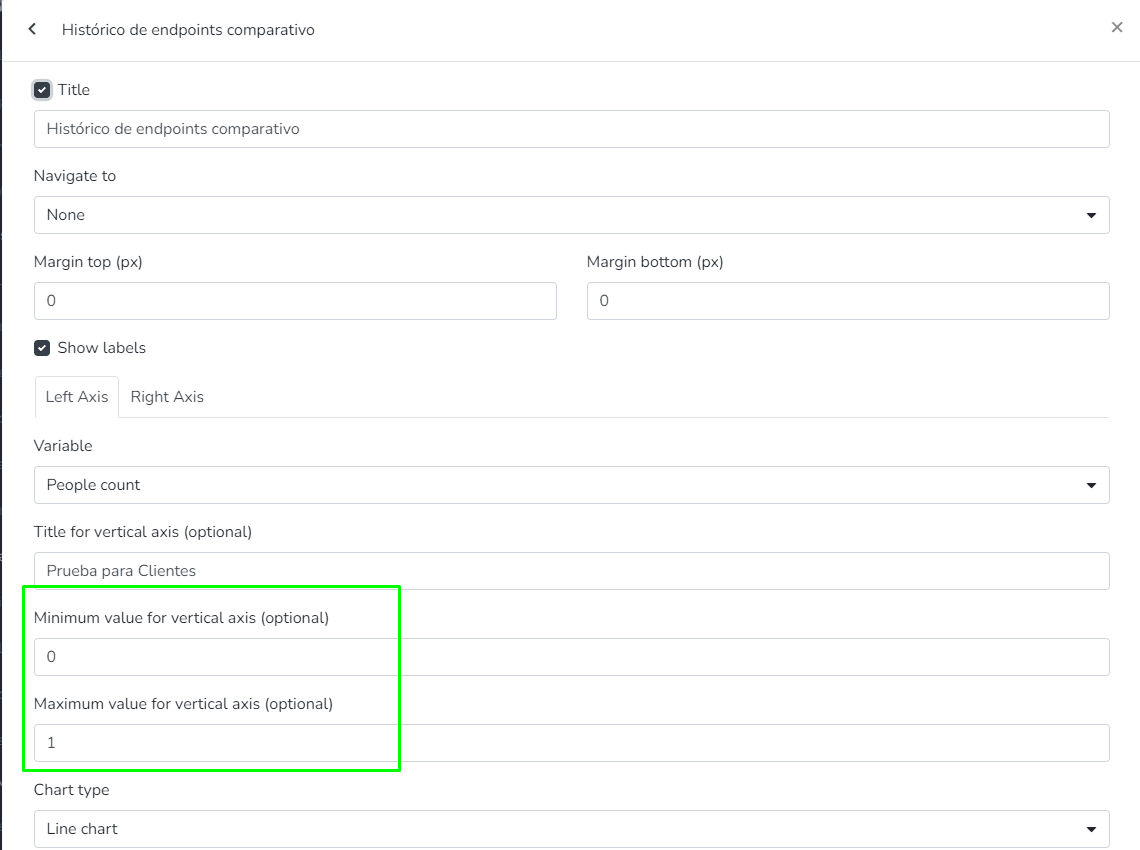

Comparative endpoint history settings with minimum and maximum vertical axis values highlighted

The user can modify the Y-axis titles (instead of displaying the variable type names).

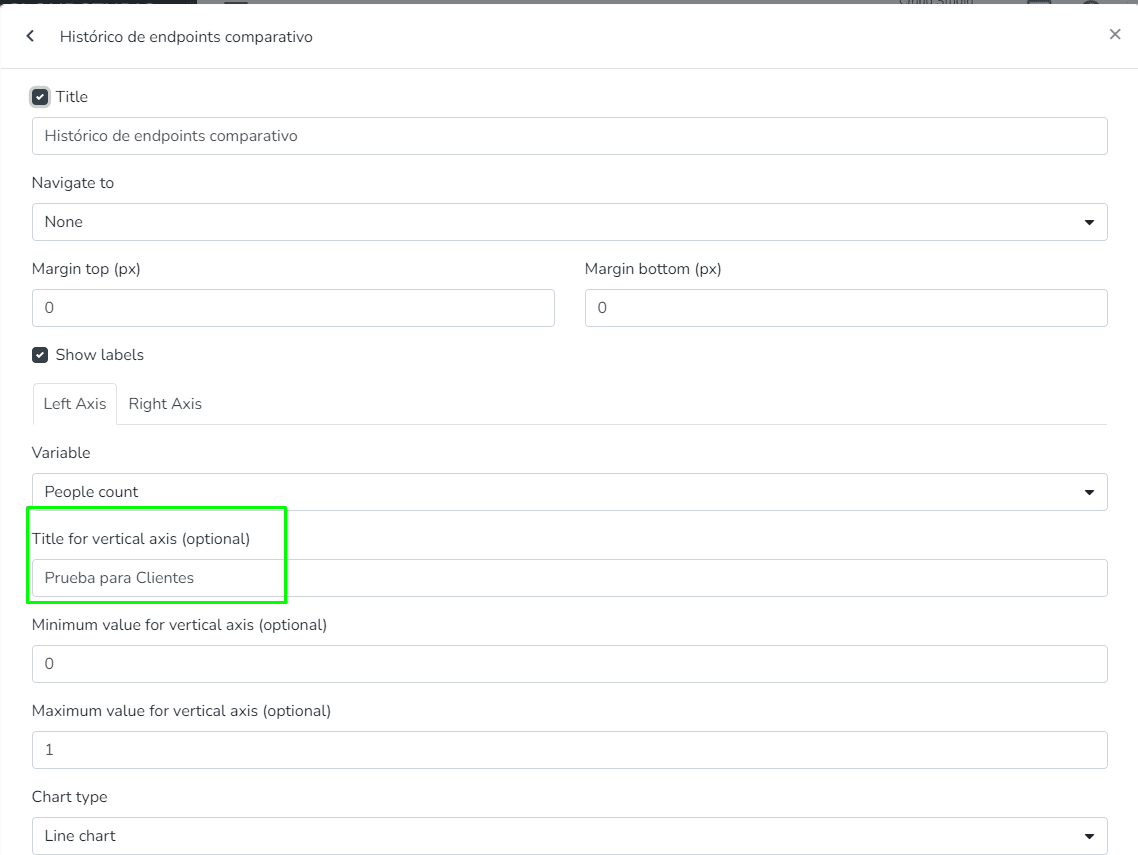

Widget configuration form highlighting the field for the vertical axis title

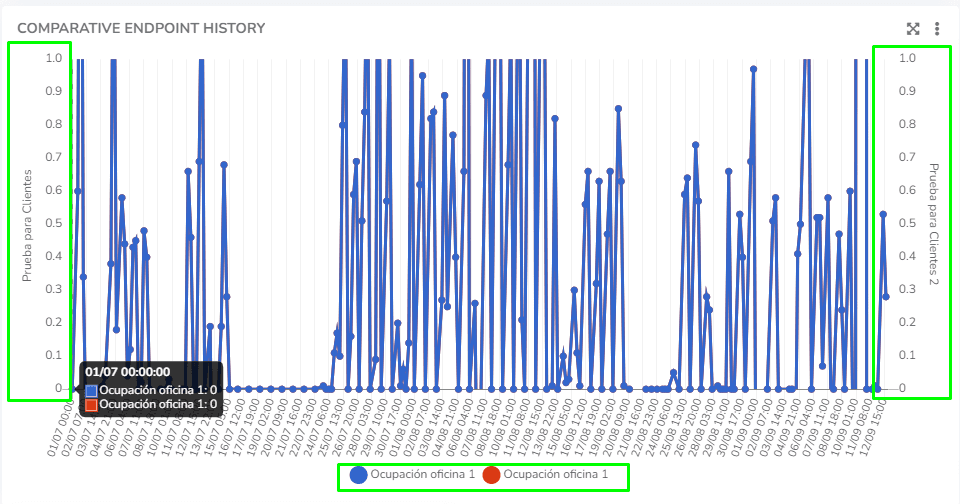

Comparative endpoint history chart with the custom Y-axis titles highlighted

The user can view the tooltips of history charts, which display all data points associated with an X position.

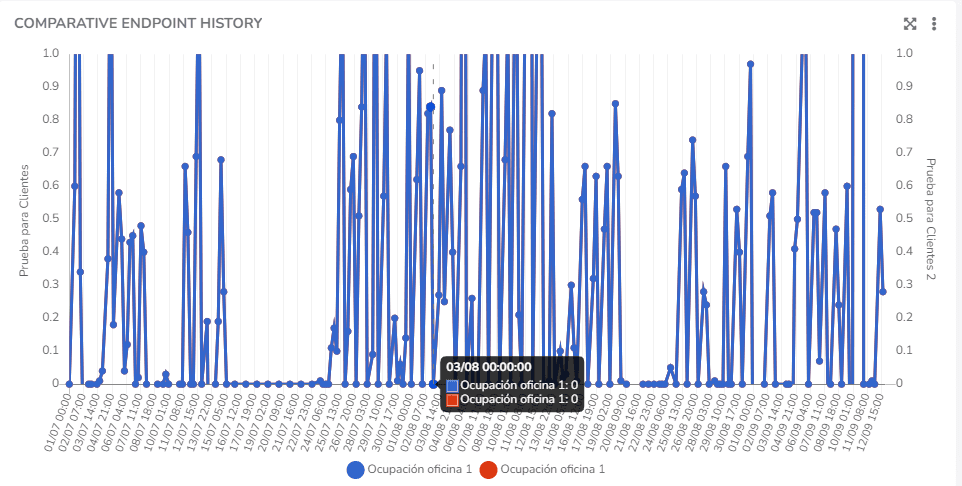

Comparative endpoint history chart with a tooltip showing the values at one X position
