Share Dashboard

The user can use the corresponding icon to share the Dashboard and/or download it in two formats.

When accessing the Dashboard from the Dashboard List and editing is required, the Share option will not be enabled until edit mode is closed.

1- Share Dashboard: By selecting the Get Link button, the user will generate an access link to the dashboard they want to share. This link can be opened and viewed in a browser without needing access to the platform.

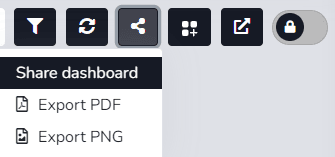

Share dashboard dropdown menu displaying Export PDF and Export PNG options

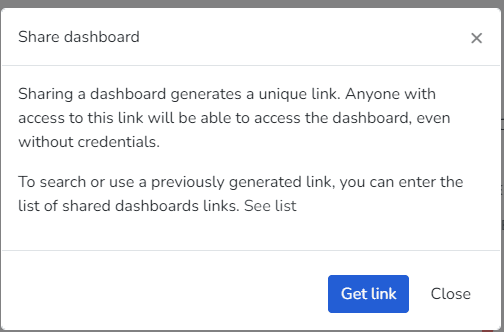

Share dashboard pop up dialog with the Get link button

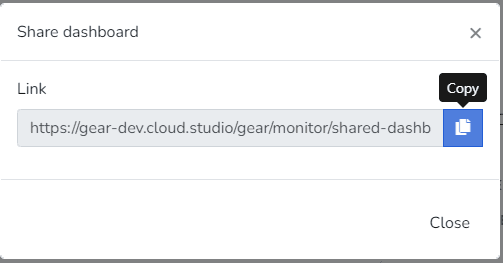

Share dashboard dialog displaying the generated link with a copy button

2- Export PDF: Here the user can download the dashboard in Portable Document Format (PDF) according to the applied filter.

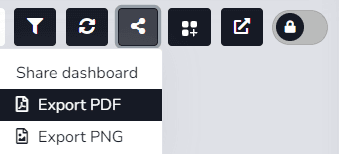

Dropdown menu from the share button with the Export PDF option selected

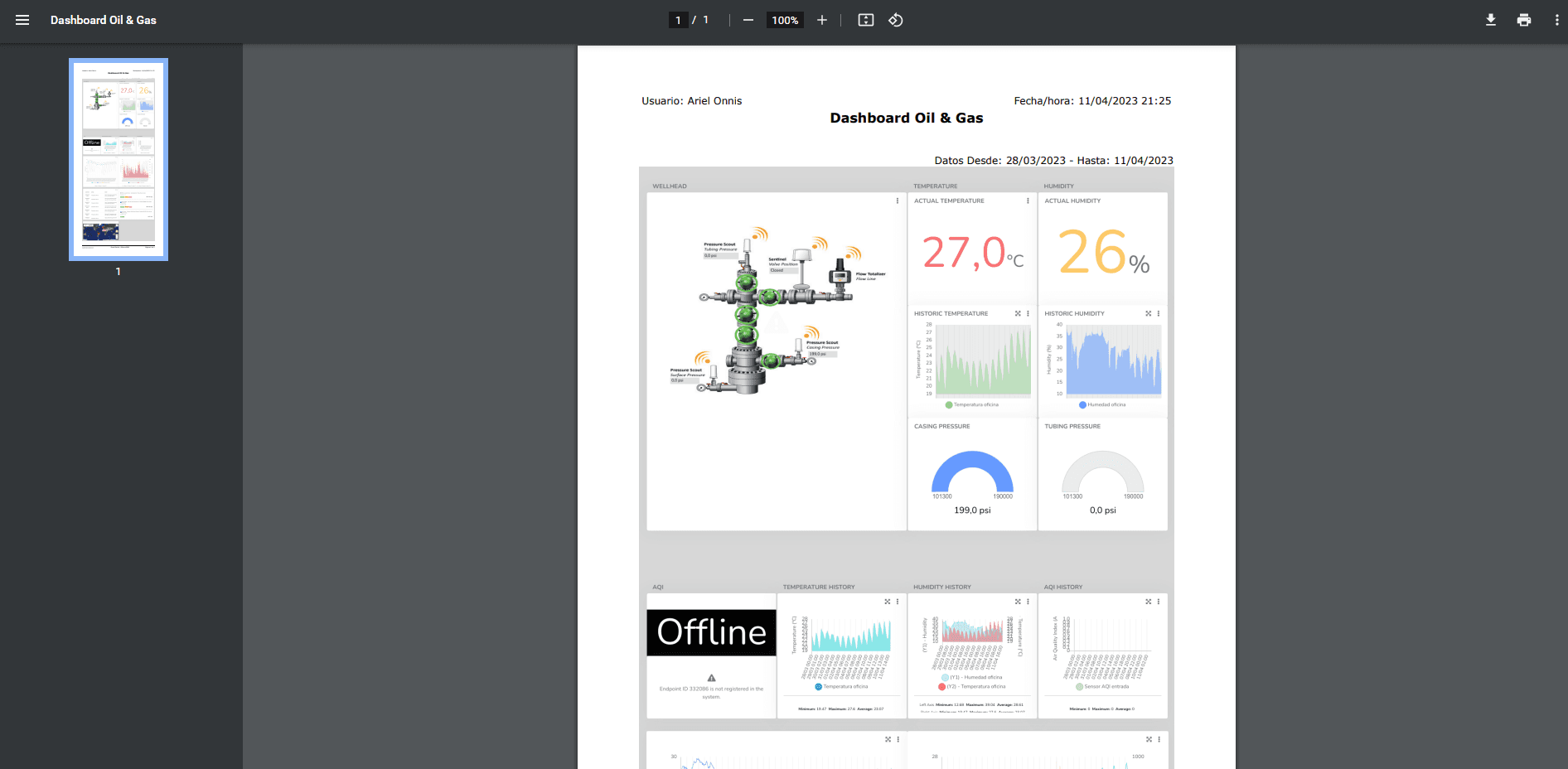

Dashboard exported as PDF showing temperature, humidity, pressure and history widgets

3- Export PNG: The user can download the dashboard in Portable Network Graphic (PNG) format according to the applied filter.

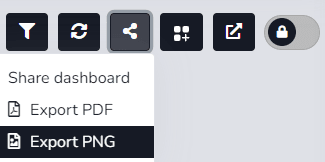

Share dashboard drop-down menu with options Export PDF and Export PNG

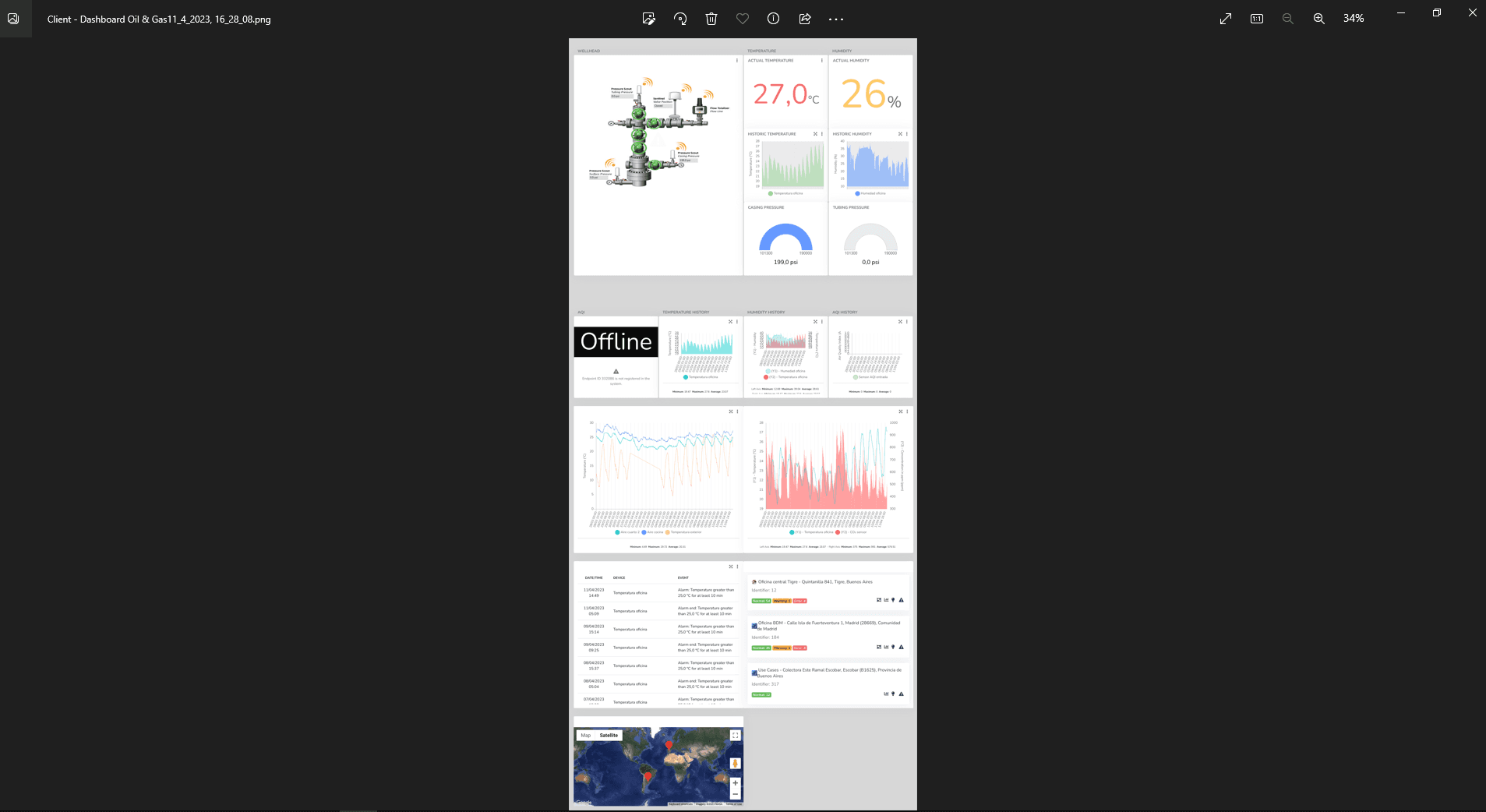

PNG image file showing the full content of the exported dashboard

Última atualização em

Edit Groups and Widgets

Dashboard Design editing is tied to each user's permissions. If the user has the required permission, they can use the edit button located in the upper right corner of the dashboards when entering the Dashboards option in the Monitor menu.

Share Dashboard - Mobile App

The user can use the corresponding icon to share the Dashboard. When accessing the Dashboard from the Dashboard List and editing is required, the Share option will not be enabled until edit mode is closed.
