命令 Reception and Confirmation

Basic 命令 Integration Flow

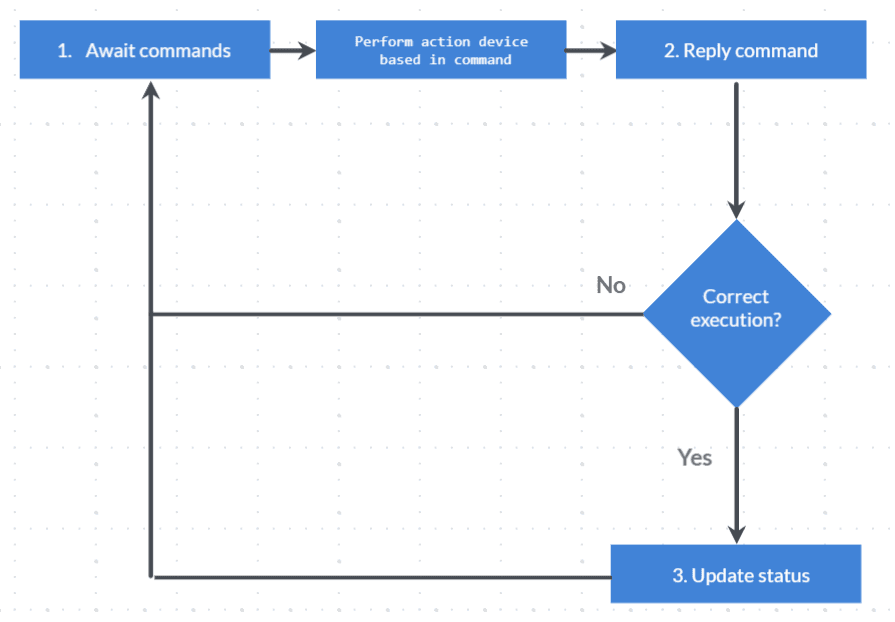

等待命令、执行、回复并在成功后更新状态的流程图

Basic command integration flow

The gateway, device, or endpoint must be listening for commands by executing the corresponding method. A long polling mechanism is used for this, w此处 the request remains on the server side for a defined amount of time and returns with the response either when the specified time has elapsed or when a command execution has been detected.

This response must be interpreted by the device, the corresponding actions must be performed, and a response must be sent through the command response method to report whether the execution was successful or not.

If successful, the method to update the device status must be executed accordingly.

Finally, ensure that command listening continues with the first method mentioned.

1. Wait for 命令s

命令s can be listened to at 3 levels:

  1. At the Gateway level
  2. At the Device level
  3. At the 端点 level

These commands must be called cyclically to constantly listen for executed commands.

端点 命令s

The WaitFor命令_端点 method must be called via HTTP POST:

POST /services/gear/DeviceIntegrationService.svc/WaitForCommand_Endpoint HTTP/1.1
Host: gear-dev.cloud.studio
Content-Type: application/json

{
    "accessToken": "",
    "endpointID": 1,
    "timeoutSeconds": 60
}

参数

名称说明数据类型
accessTokenUnique 访问令牌text
endpointIDUnique endpoint identifier, obtained from the Managernumeric
timeoutSecondsTime in seconds the server will wait before returning the response if no commands have been detectednumeric

Response

The response is a list within the WaitFor命令_端点Result property that will contain each of the corresponding commands:

{
   "WaitForCommand_EndpointResult":[
      {
         "Closure":null,
         "CommandID":1120907993,
         "CommandType":1,
         "Custom":null,
         "DeviceID":7246,
         "Dimmer":null,
         "EndpointID":113139,
         "Management":null,
         "OnOff":{
            "AutomaticOverrideMinutes":0,
            "CommandType":1
         },
         "Thermostat":null
      }
   ]
}

更多信息 about the response properties, see the documentation.

Depending on the type of command executed, the corresponding property must be considered to determine the action to perform.

For example, if the 命令Type is 1, it means it is a command for an "Appliance" type endpoint. T此处fore, the information in the OnOff property must be considered.

The different command types can be found in this documentation.

2. Respond to a 命令

If a command has been received with any of the WaitFor命令s_* methods and after executing the corresponding actions on the endpoint (hardware), the command must be responded to whether it succeeded or failed.

To report that the command has been executed, call the following method:

POST /services/gear/DeviceIntegrationService.svc/RespondCommand HTTP/1.1
Host: gear-dev.cloud.studio
Content-Type: application/json

{
    "accessToken": "",
    "response":{
        "CommandID": 1120907993,
        "ResponseType": 0,
        "ErrorCode": "",
        "ErrorMessage": "",
        "ResponseData": "ok"
    }
}

The 命令ID must correspond to the one obtained from the corresponding command wait method. The ResponseType must be one of the enum values, as appropriate. In this case it is 0, which means "success".

3. Update 端点 Status

If the command execution was successful, the new endpoint status must be reported. To do this, use the corresponding method for the endpoint type.

Following the appliance example, call the following method:

POST /services/gear/DeviceIntegrationService.svc/UpdateApplianceStatus HTTP/1.1
Host: gear-dev.cloud.studio
Content-Type: application/json

{
    "accessToken": "",
    "endpointID": 1,
    "isOn": true
}

更多信息 about this method, see the on/off appliances section.
