基本概念

This is w此处 we'll break down the key terms that will make you a master of our platform. We know you're already an expert, but even geniuses need a solid foundation.

云端连接服务器、数据库、显示器和笔记本电脑的示意插图

Instance

An instance is a virtual server that provides online services. Unlike maintaining your own physical server, which is costly and inefficient, cloud providers maintain the hardware in their data c输入s and provide virtual access to resources through a cloud instance. These resources can be used to run compute-intensive tasks, such as containers, databases, microservices, and virtual machines.

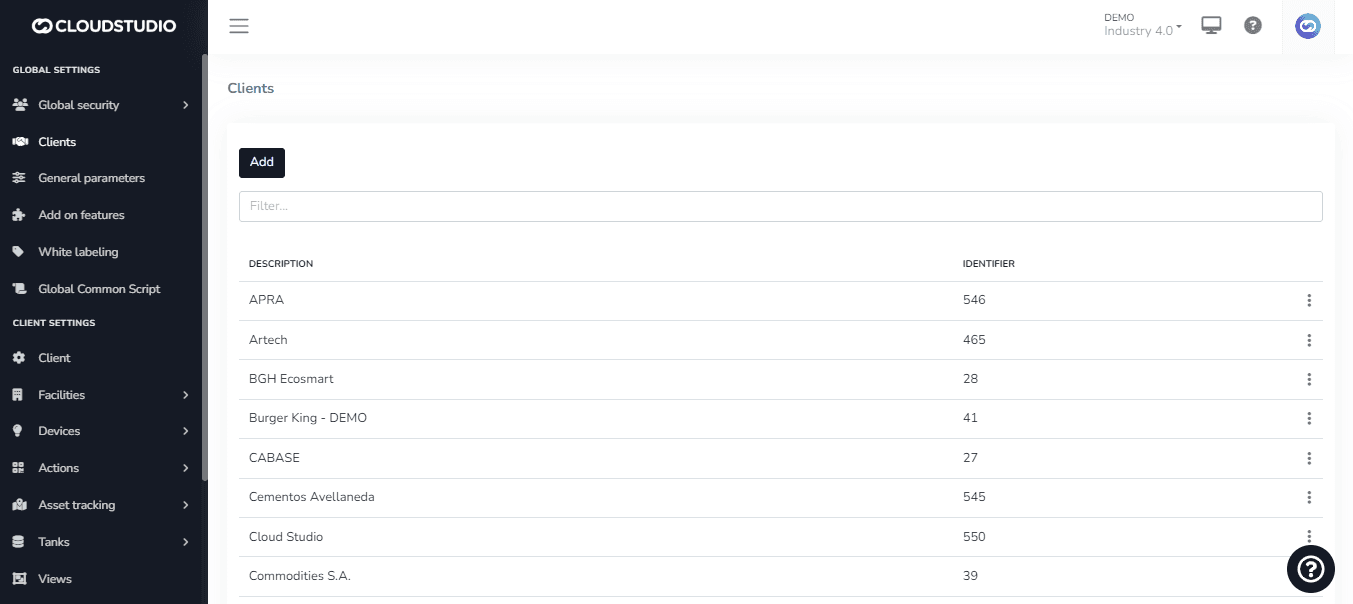

实例的客户列表,含添加按钮和客户标识符

Clients

The platform is multi-tenant, meaning it allows the coexistence of multiple clients, each monitoring their own infrastructure, in virtually independent installations. However, with the appropriate permissions, the operator can access different clients' installations to facilitate support, configuration, and platform maintenance.

The multi-tenant architecture also maximizes data c输入 infrastructure by hosting multiple clients on the same servers and minimizing associated maintenance tasks.

Find more information about how to manage your clients 此处.

To use the white labeling feature, follow the steps described in this section.

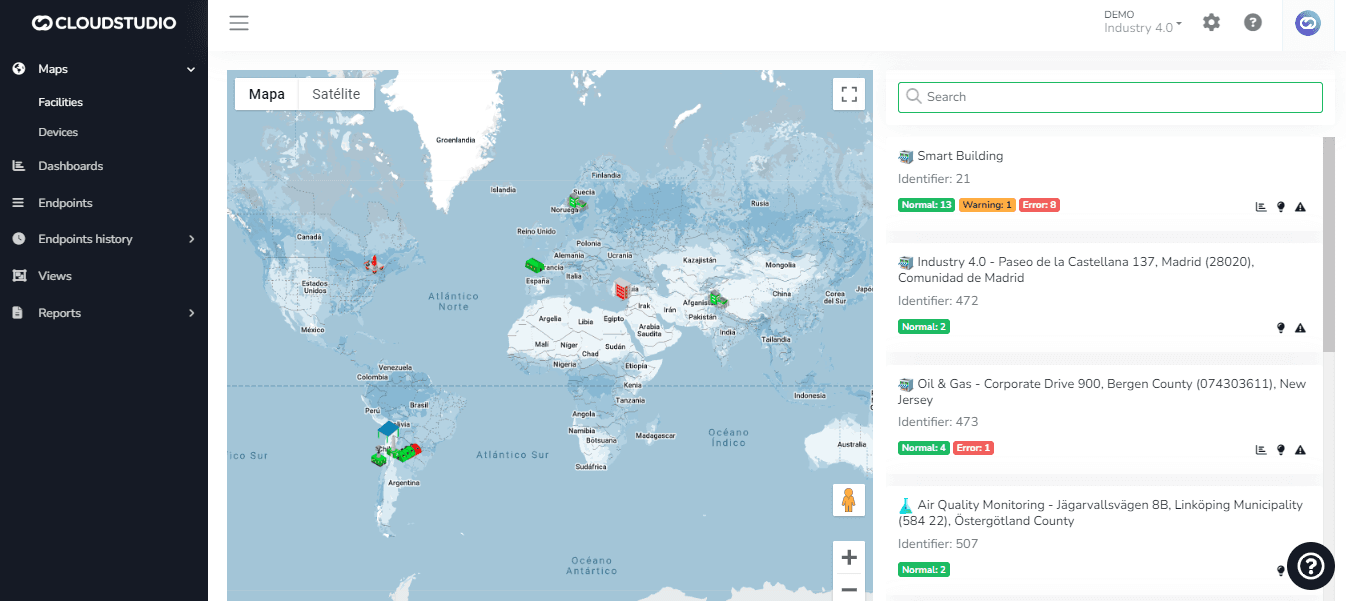

设施世界地图及显示各设施状态的侧边列表

设施

Each client can have their own facilities (branches, buildings, etc.), which can in turn be grouped into facility types (stores, residences, or any other categorization). The type classification can be used to present information in 仪表盘. It is possible to associate an image for each facility type; these images will be reflected in the list on the right side of the monitor map.

Want to start creating facilities on the platform? Check this section. (To be created)

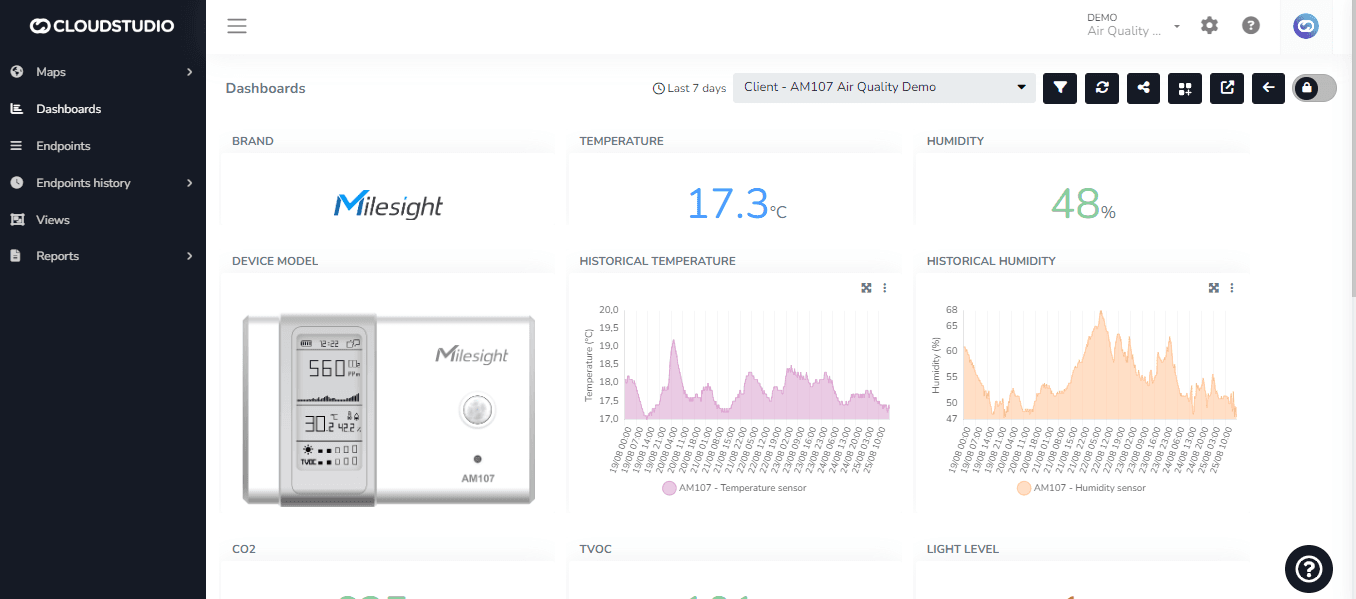

空气质量传感器仪表盘,显示温度、湿度及其历史曲线

设备

In the IoT ecosystem, a device refers to any object or thing that has the ability to connect to the internet and communicate with other devices or systems. IoT devices can be physical devices such as sensors, cameras, smart lights, appliances, vehicles, medical devices, etc., or virtual devices such as online applications and services.

Learn about the entire device integration process 此处.

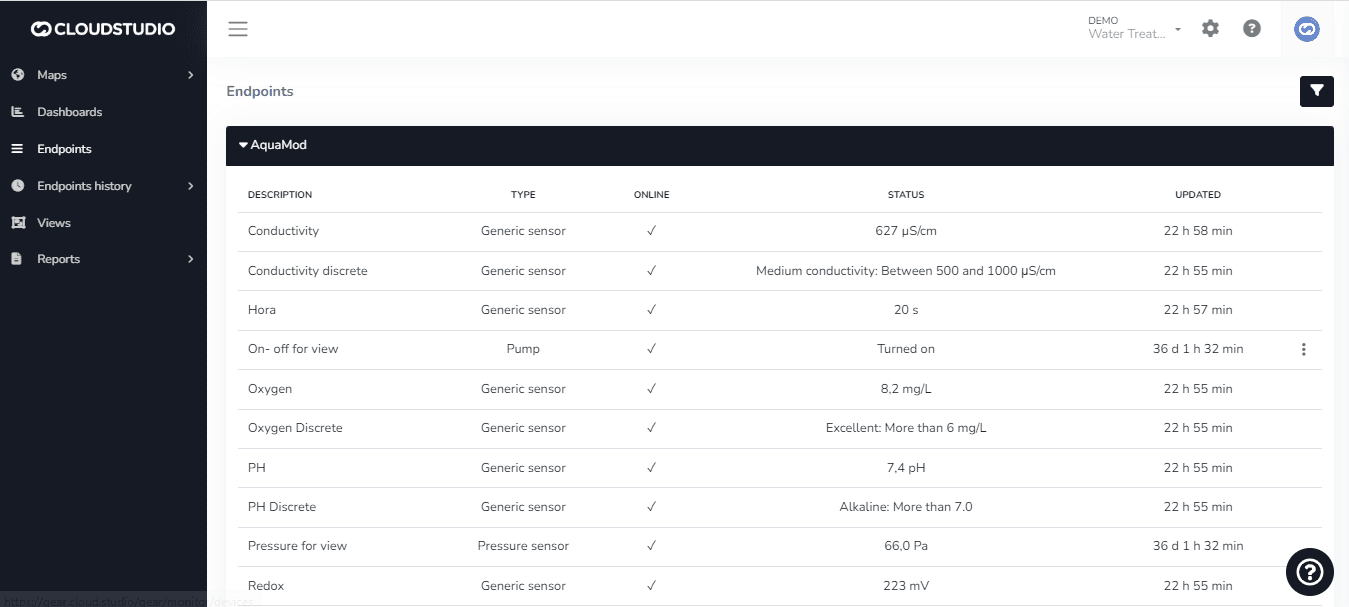

设备的端点列表,显示类型、在线状态、当前值和更新时间

端点

端点 are the variables associated with a specific device. A device can have one or many endpoints, which it can report jointly or independently to the platform.

We expand on endpoint information on this page.

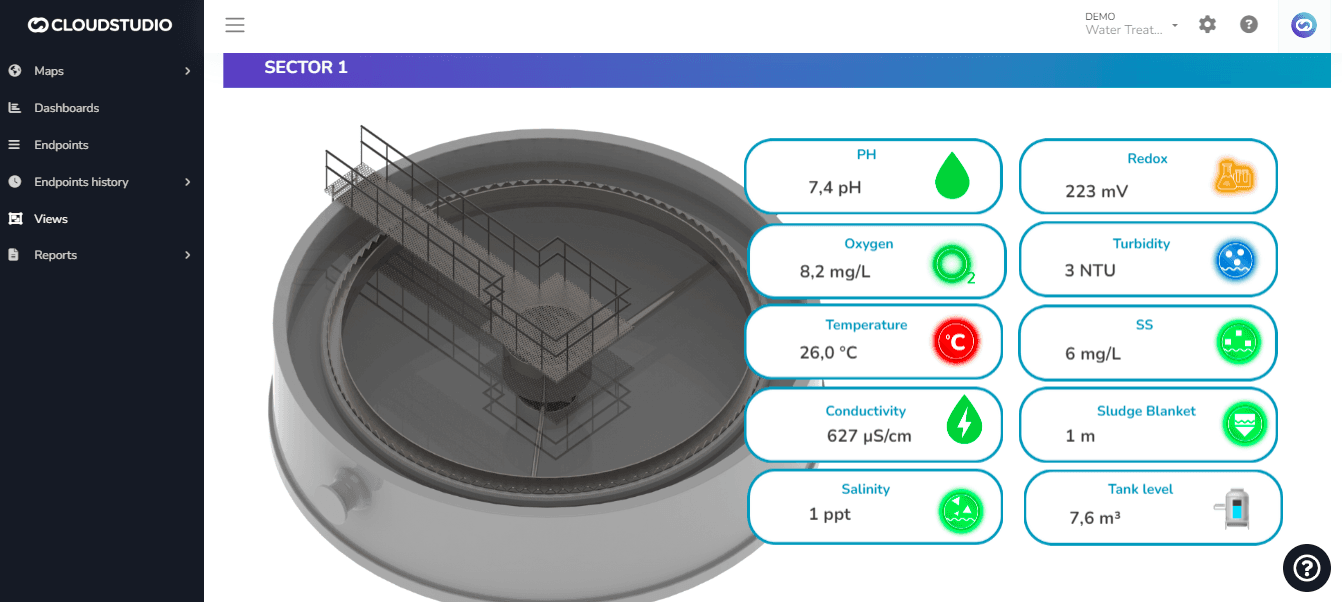

水处理池视图,显示pH、溶解氧、浊度、温度和液位等指标

Tanks

Tanks are entities within the platform used to quickly, simply, and accurately represent the operation of this type of asset in the field. This entity has associated volume, weight, and flow sensors, and allows defining the contained material, total capacity, as well as alert thresholds.

Learn more about tanks 此处.

空气质量仪表盘,显示CO2、TVOC和光照的当前值及历史曲线

仪表盘

A dashboard refers to a visual interface that displays real-time information about the performance and status of IoT devices and systems. It can provide information about a variety of metrics, such as energy consumption, temperature, humidity, 按下ure, speed, location, among others.

They are typically presented in the form of charts, tables, maps, and other visual elements, allowing users to understand and analyze information quickly and effectively. Some dashboards may also include alerts and notifications to indicate performance issues or anomalies, enabling users to take timely corrective action.

They are commonly used in a variety of applications, such as smart building management, industrial production monitoring, vehicle fleet management, smart agriculture, among others. In summary, an IoT dashboard is a valuable tool for visualizing and analyzing information collected by IoT devices and systems in real time.

资产追踪仪表盘,显示追踪器电量和最近事件列表

Go to this page to explore more about dashboards.

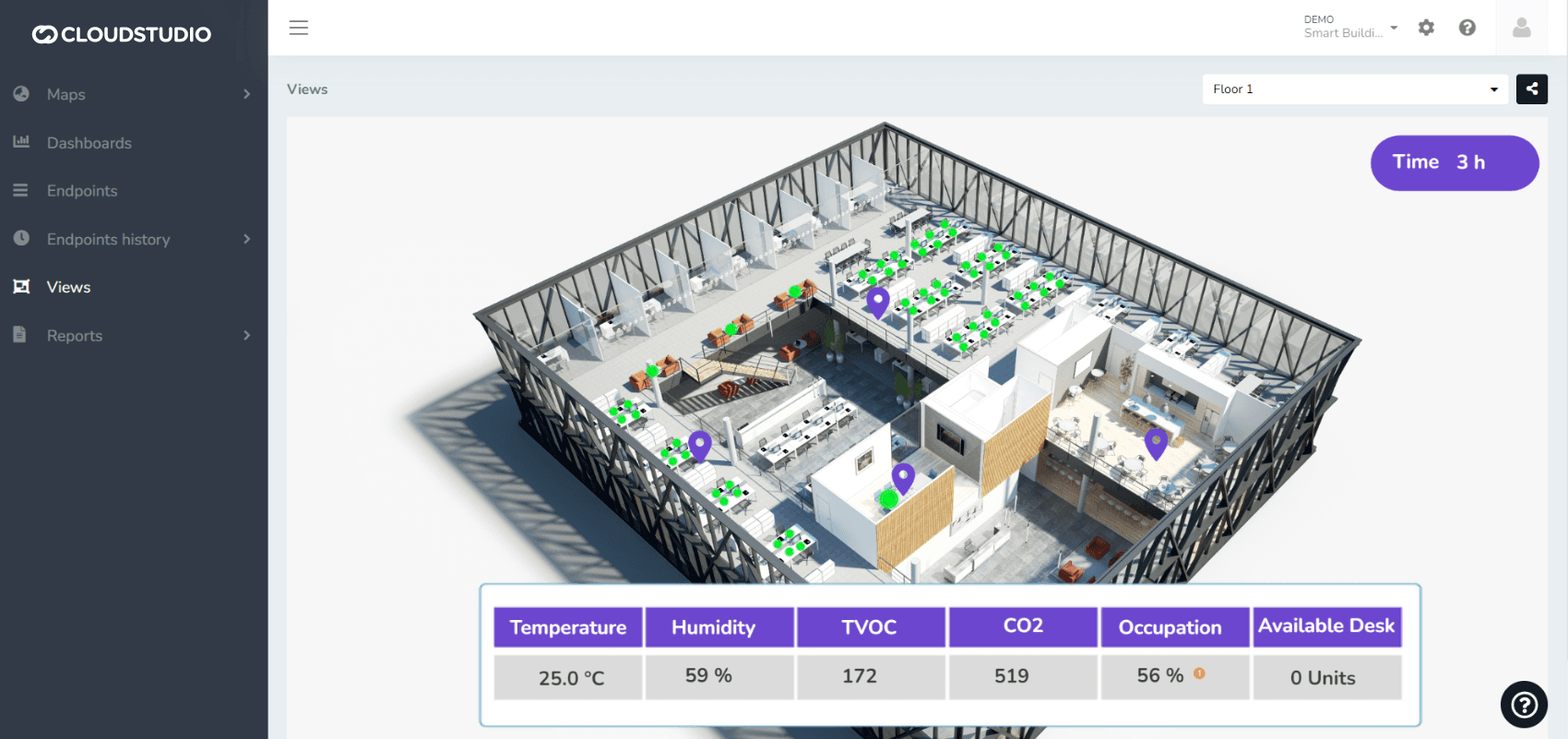

SCADA类3D办公室视图,含传感器标记和环境数据表

SCADA-Type 视图

These are SCADA-type visualizations that allow using a background image and then inserting data, graphic elements, alerts, and other components to create a highly useful visual tool for supervising and controlling an operation or production process.

Have questions about how to use SCADA-type views? Check this section.

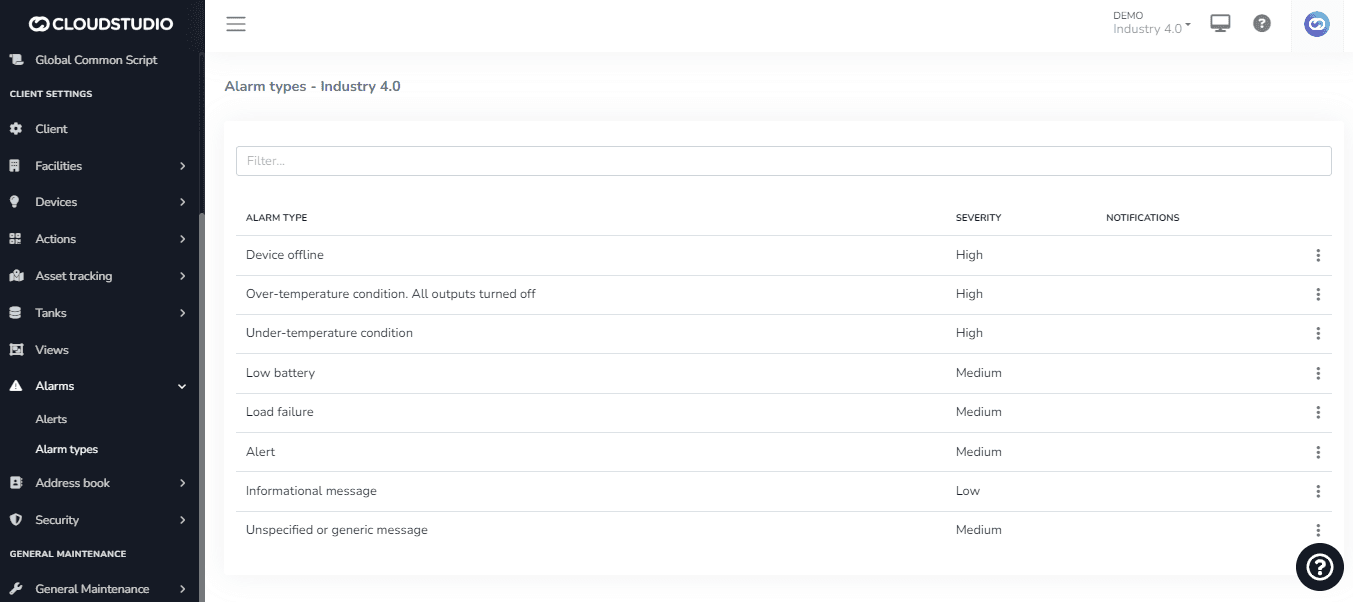

警报类型列表,显示严重程度和通知列

提醒与警报

The platform is capable of receiving any alarm openings and closures. Additionally, the platform allows the creation of alerts, which can be configured to send notifications when the variable in question is outside the established parameters.

The system has different types of alarms for your devices, which can be configured to receive notifications via email, SMS, and voice calls.

It is worth noting that the alarms module can leverage all functionality related to 地理围栏, geolocation data, and instantaneous speed of vehicles with an installed tracker, as well as the time/duration factor, to generate specific alerts for each required use case.

Learn more about this feature 此处.

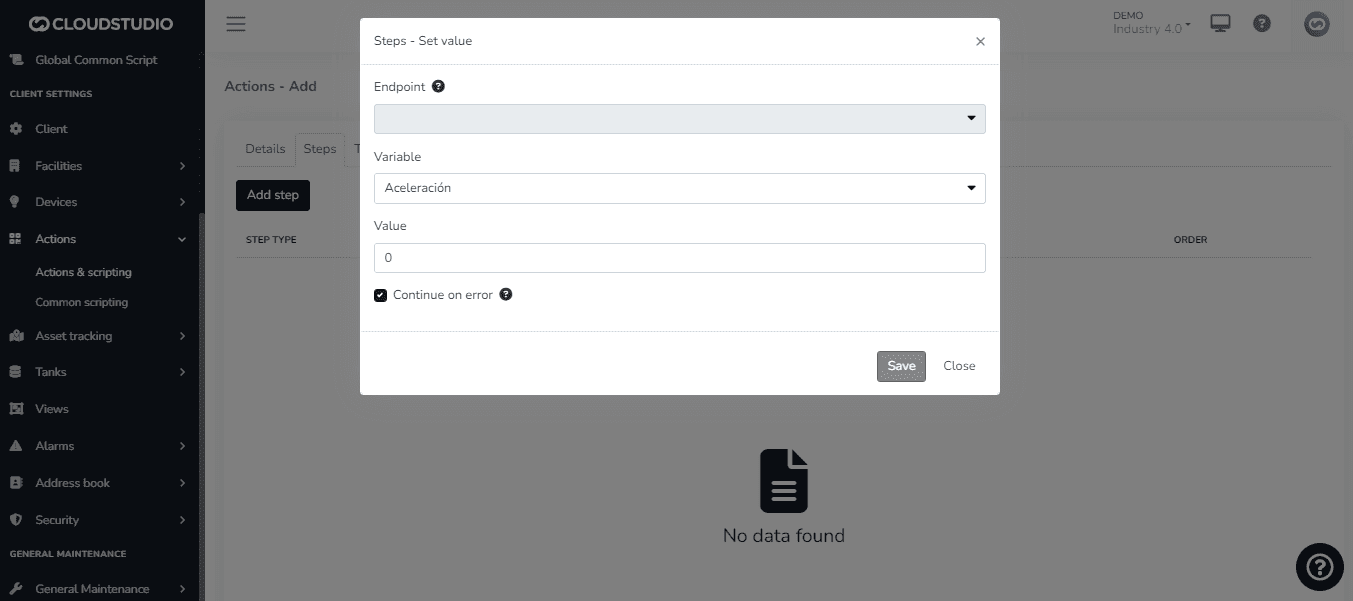

新增动作时的设置值步骤对话框,含端点、变量和值

动作

The platform enables the application of automation rules to optimize processes and resource usage. These are applied by modifying the state of a device in response to an event. Events can be calendar-based (hour, day, month) or variations in temperature, humidity, light level, device on/off, or any other variable being reported to the platform. The engine can be used to manage energy modes, trigger actions, or fire alerts.

It allows executing complex actions with code fully definable by the user.

Access to all devices, endpoints, etc., according to each user's rights.

Learn to configure actions 此处.

Scripting

The platform includes an internal scripting engine that allows extending existing functionality, as well as modifying its behavior, when it is necessary to add support for unsupported devices or create complex business rules. (Yes, you can create your own rules.)

Access all available scripting resources 此处.

Notifications

The platform includes a module responsible for configuring and sending notifications, such as emails and text messages. It handles sending email notifications to users for various reasons, such as open or closed alarms, scheduled reports, etc.

访问令牌

When integration of platform services by external applications is required, access to the services requires obtaining a token known as an 访问令牌. It is possible to generate as many tokens as needed and assign the necessary permissions to each one. Likewise, it is possible to set the duration of 访问令牌 and delete them if necessary.

Check this page to learn how to create 访问令牌.

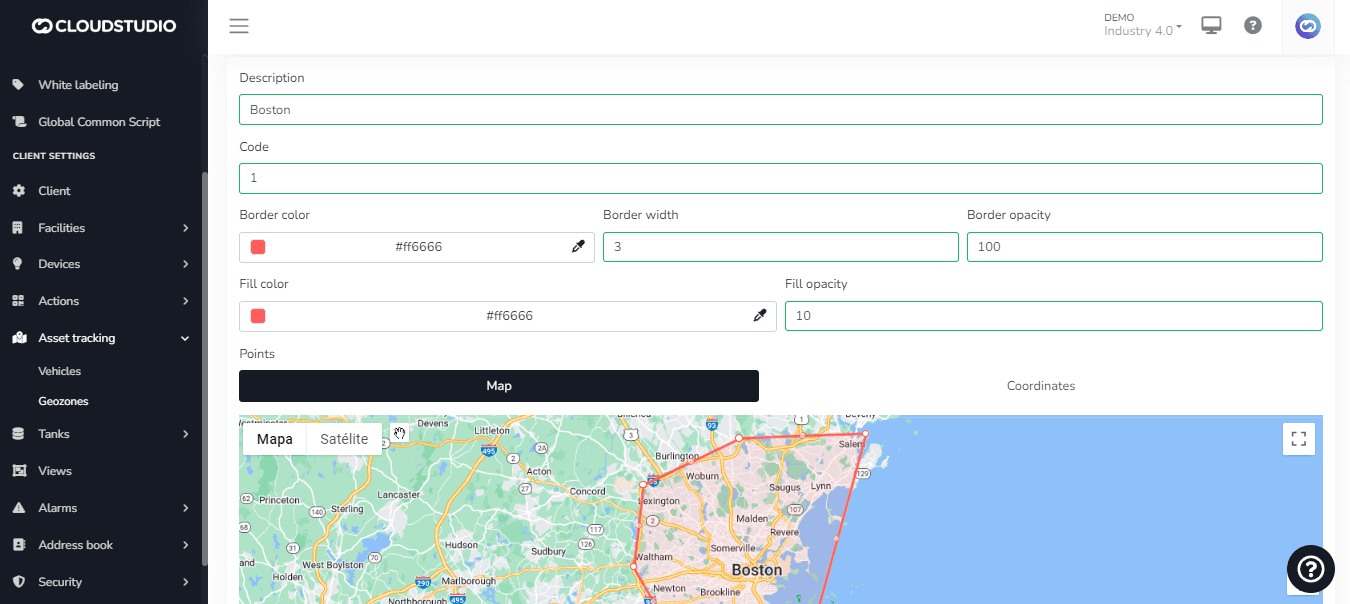

地理区域表单,含边框和填充颜色及地图上绘制的多边形

地理围栏

This module allows the creation and management of geozones from the map tool or using coordinates (or both for greater precision). The geozone has an associated description, code, color, border thickness and opacity, and fill color and opacity. The geozone can be edited later.

It is possible to create "nested" geozones within larger geozones, or generate "overlapping" geozones and set alert rules that take into account the overlapping zone.

Go to this page to learn more about geozones.

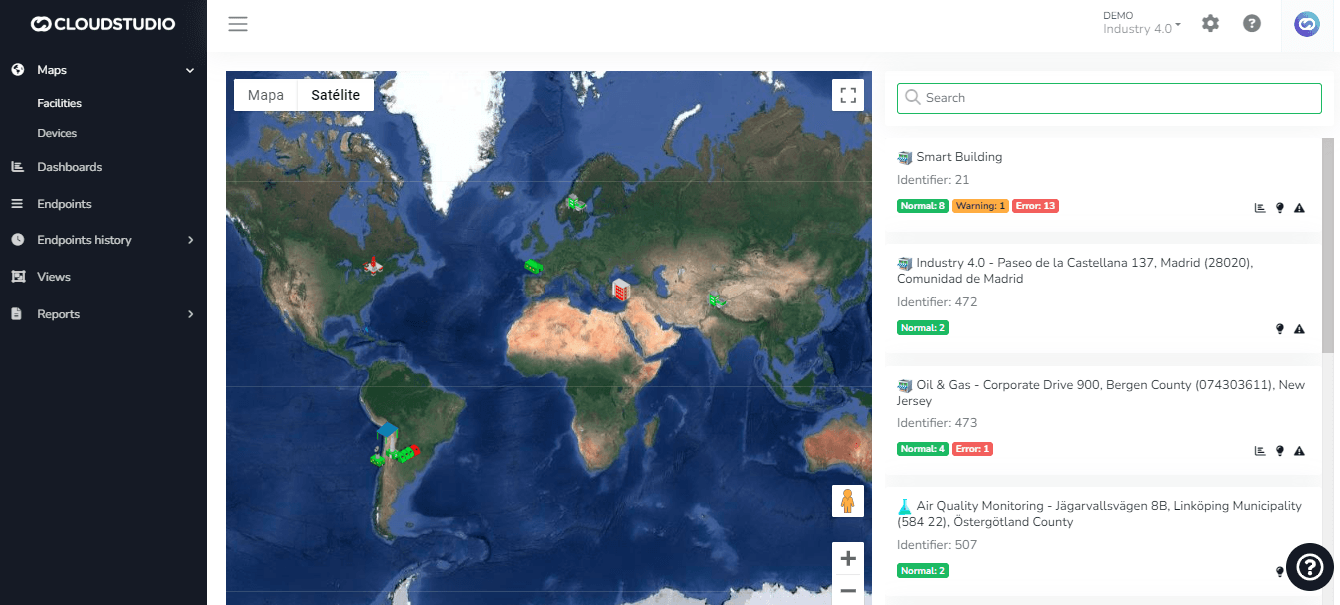

卫星视图下的设施地图,带有标记和侧边设施列表

地图

Our platform leverages the powerful Google 地图 interface to provide you with an unparalleled location experience. We offer three distinct map types:

  • 设备地图: Here you can intuitively view the location of devices connected to our platform. This view provides a clear snapshot of how your devices are distributed across the terrain.
  • 设施地图: This map 允许您 explore the location and real-time information of facilities in detail.
  • Real-Time Tracking 地图: 通过这个 feature, you can track any type of moving assets in real time.

These maps, integrated with Google 地图 functionality, are not only informative but also highly functional, allowing you to interact with your data efficiently and precisely.

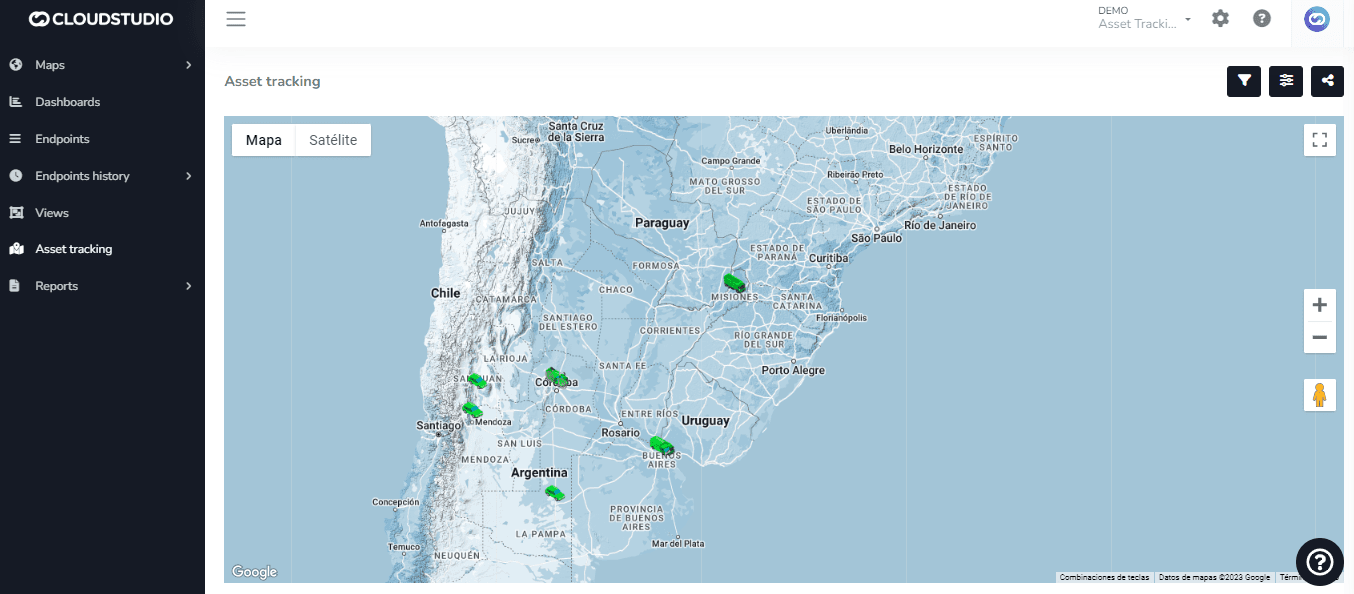

资产追踪地图,实时显示车辆位置

报告

At the Core level, the platform provides a series of basic reports, which can then be extended in each vertical. In Cloud Studio, in particular, a large number of reports related to energy, inventory, etc. are added. The core reports module offers all the basic functionality of server-side pagination, tabular data downloads, PDF conversion, scheduled reporting (automated scheduled reports), and much more.

Learn more about reports 此处.

用户 and 权限

用户 belong to one or more groups that have associated permissions. This way, groups can be created that have exclusive access to certain sections and not others. These same permissions can be granted individually to each user.

Learn more about permissions 此处. To understand user creation, you can access this section. (To be created)

To audit your users' activity, you can use this tool. (To be created - 用户 activity log)

Need a report sent to someone who isn't a user? Go 此处.

Learn to create an address book of contacts on this page.

Couldn't find the information you needed? Contact us
