视图

视图 allow designing SCADA visualizations w此处 images can be inserted and then overlaid with data that, unlike what can be achieved with dashboards, updates in near real-time.

In views, sensor (endpoint) data from devices is inserted using a WYSIWYG design tool through the use of visual objects called elements.

视图 are implemented in two applications:

  1. The view manager sub-module, which includes the designer and is found in the Manager.
  2. The visualization sub-module, which allows 选择ing a running view and is found in the Monitor.

Creating views

To create a new view or modify an existing one, go to the views menu in the Manager application.

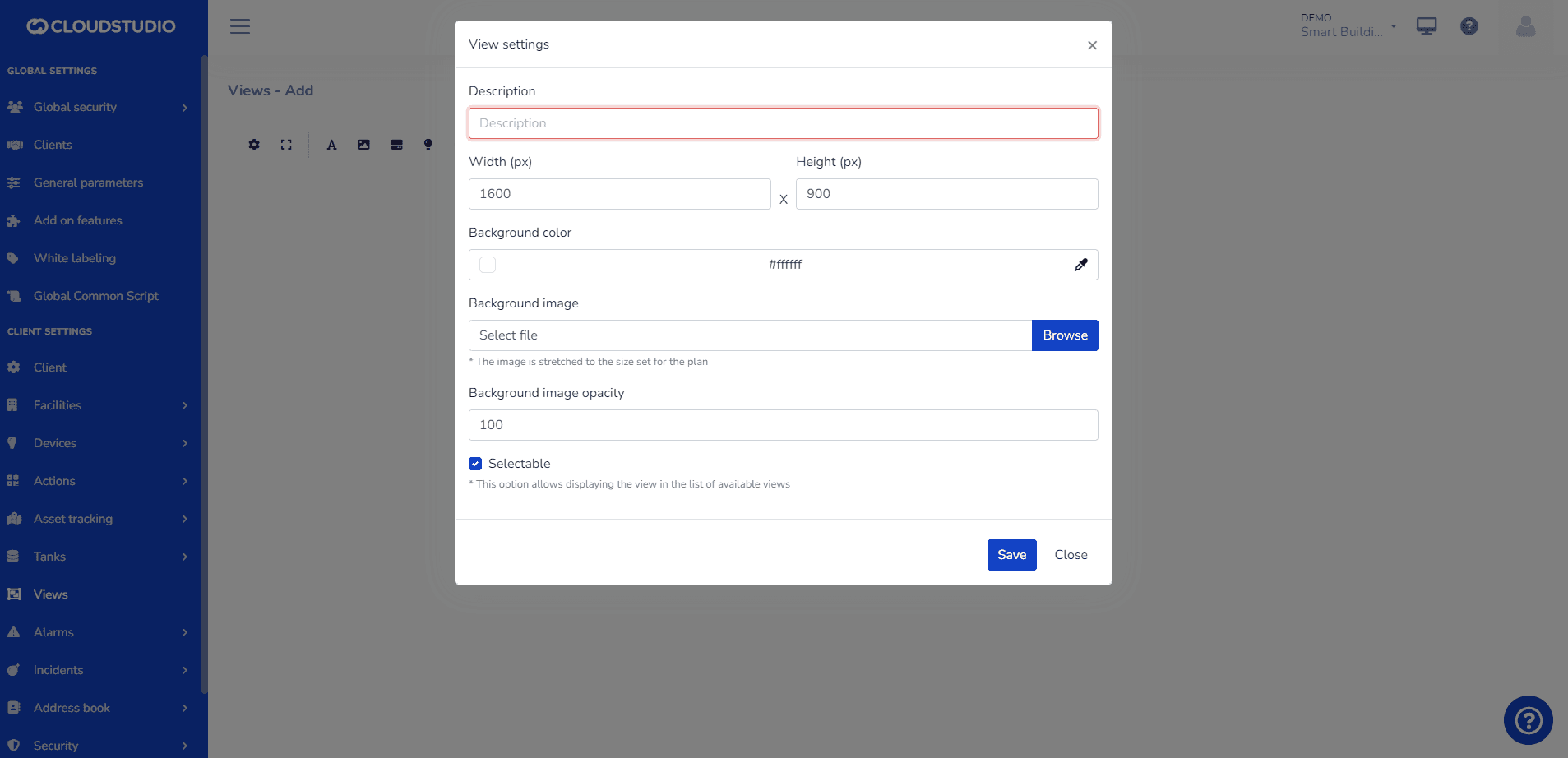

视图设置对话框,含描述、尺寸、背景和可选选项

Once created, a canvas with the background chosen by the user will open. In views, the following actions can be performed:

Tips:

  • The recommended size for views is 1600px x 900px. However, it can be customized to the user's needs. - We recommend .PNG format for images with transparent backgrounds. - Watch our video on YouTube to learn more about SCADA-type views.

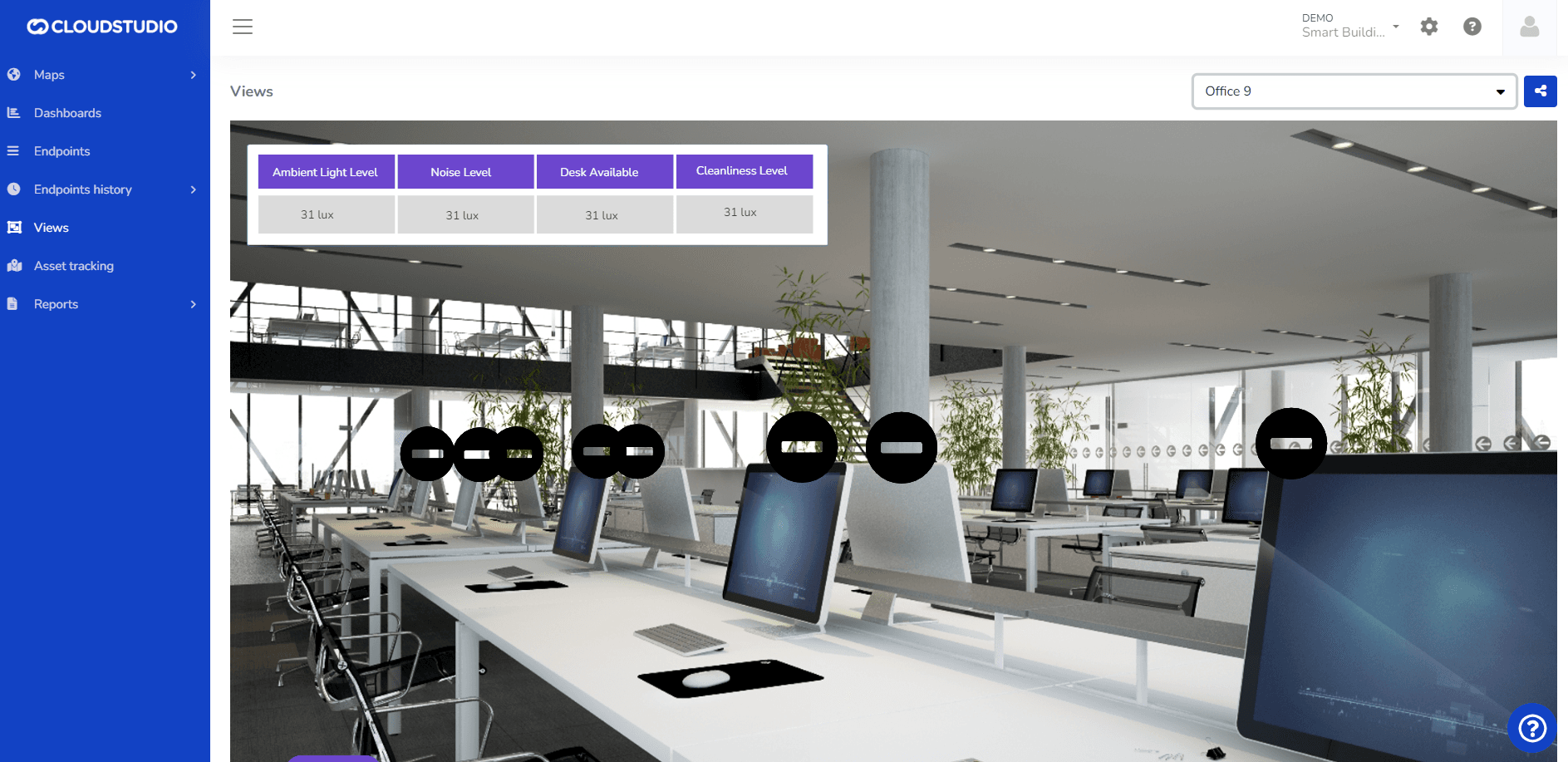

Once the view is configured, the user can view it from the Monitor as shown in the following image:

监控端中配置好的办公室视图,含状态图标和数值表格
