Widgets with dynamic titles allow customizing the information displayed on the dashboard by using variables such as **{facility_desc}**, **{device_desc}**, and **{endpoint_desc}**. To use them, include them in the "Title" field when creating your widget and check the "Title" checkbox to enable this feature.

To learn how to create a Widget and add a title, we suggest visiting our Create Groups and Widgets page.

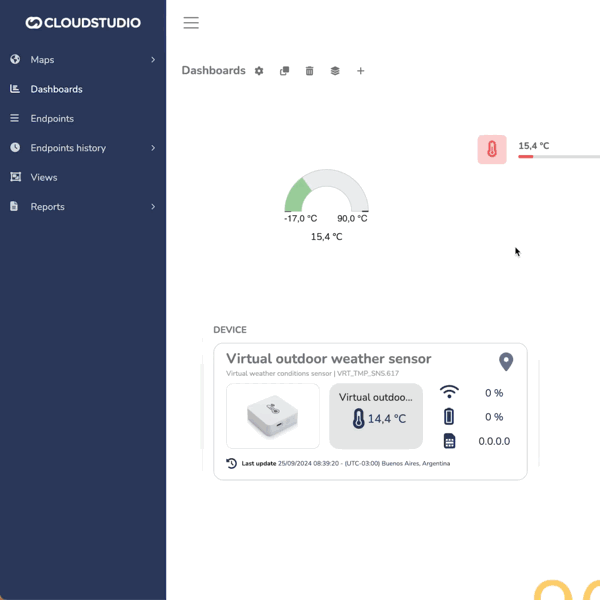

Tableau de bord avec une jauge de température semi-circulaire et un widget d'appareil

The variables entered in the title are automatically replaced with the name of the selected facility, device, or endpoint, making the title change dynamically. This helps avoid repeating generic information and provides a clearer, more relevant context for the displayed data.

Variable	Description
{facility_desk}	Replaced with the name of the facility selected by the user upon logging in.
{device_desk}	Replaced with the name of the device being used in the widget. If no device is selected, it will use the device associated with the endpoint in use.
{endpoint_desk}	Replaced with the name of the endpoint selected in the widget. If there is more than one endpoint, the first one in the list is shown by default.

These variables help display personalized and relevant information on the dashboard in a clean and automated way. Remember to use a Widget compatible with your desired variable.

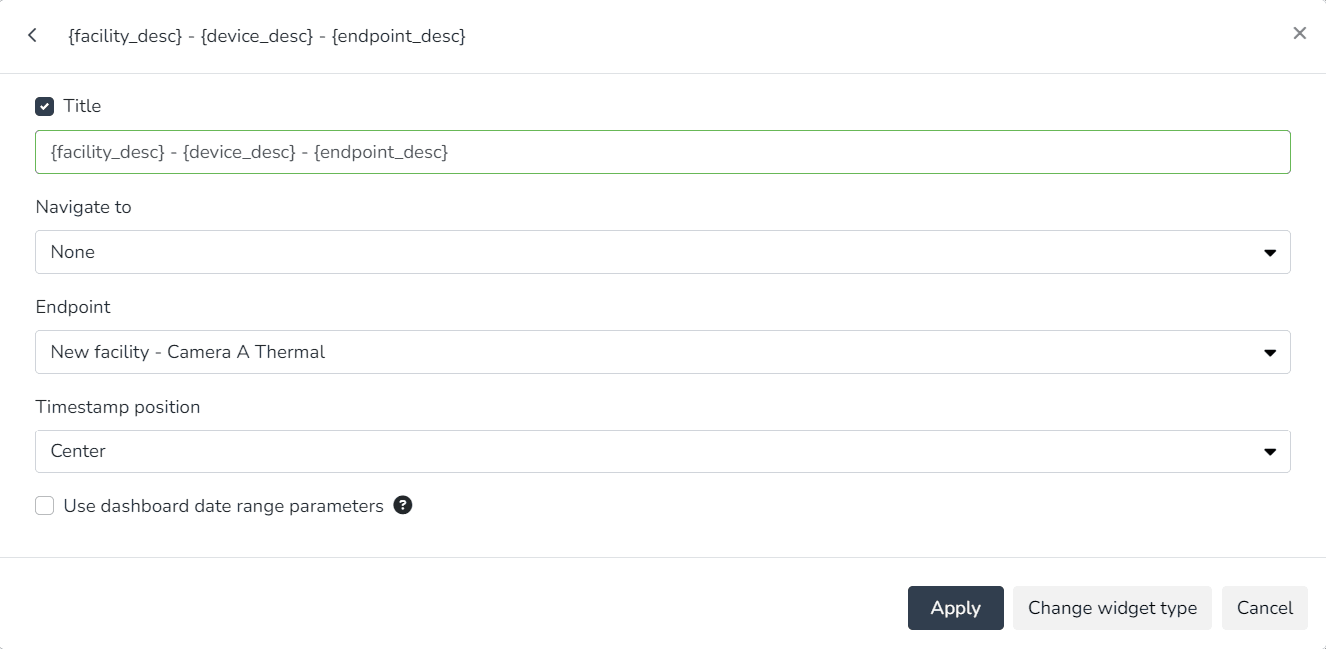

Example of creating a widget that uses all available variables, combining them in the title with spaces or optional special characters, such as the hyphen "-" in this case, to improve readability:

Paramètres d'un widget avec variables d'installation, d'appareil et d'endpoint dans le titre

And how the variables appear once the changes are applied:

Widget dont le titre dynamique affiche les noms de l'installation, de l'appareil et de l'endpoint

Widget display with dynamic titles.

Widgets that support this feature

Widget type	Supports facility description variable - {facility_desc}	Supports device description variable - {device_desc}	Supports endpoint description variable - {endpoint_desc}	Notes
Past and projected energy costs	YES	NO	NO
Past and projected energy consumption	YES	NO	NO
Active alarms	YES	NO	NO
Alarm counter	YES	NO	NO
Energy consumption targets	YES	NO	NO
Device	YES	YES	YES
Comparative endpoint history	YES	YES	YES	If there are no endpoints selected on the left axis, it will look for the first selected endpoint on the right axis
Endpoint history	YES	YES	YES
Energy consumption by category	YES	NO	NO
Energy cost by category	YES	NO	NO
Daily energy consumption by category	YES	NO	NO
Energy consumption by phase	YES	NO	NO
Daily consumption by phase	YES	NO	NO
Latest events	YES	NO	NO
Facility list	YES	NO	NO	The facilities selected in the widget are not considered; instead, the current facility selected by the logged-in user is used
Facility map	YES	NO	NO	The facilities selected in the widget are not considered; instead, the current facility selected by the logged-in user is used
Facility summary	YES	NO	NO
Weather status	YES	NO	NO
Global summary	NO	NO	NO
Infrastructure	YES	NO	NO
Daily maximum power	YES	NO	NO
Occupancy	YES	YES	YES
Plain text	YES	NO	NO
View	YES	NO	NO
Daily power factor	YES	NO	NO
Daily average power	YES	NO	NO
Individual alarm counter	YES	NO	NO
Camera snapshots	YES	YES	YES
State timeline	YES	YES	YES
Static image	YES	NO	NO
Linear variable gauge	YES	YES	YES
Metrics	YES	YES	YES
Rounded variable gauge	YES	YES	YES
Vertical linear variable gauge	YES	YES	YES
