History

Line chart showing the variation of an endpoint variable type over time. In endpoint history charts, the user can enter minimum and maximum values to define the Y-axis ranges, as well as modify the variable names associated with the Y-axis titles.

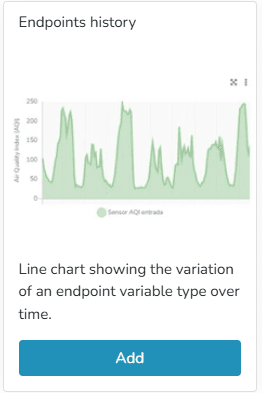

Selection card for Endpoints history widget with chart preview and Add button

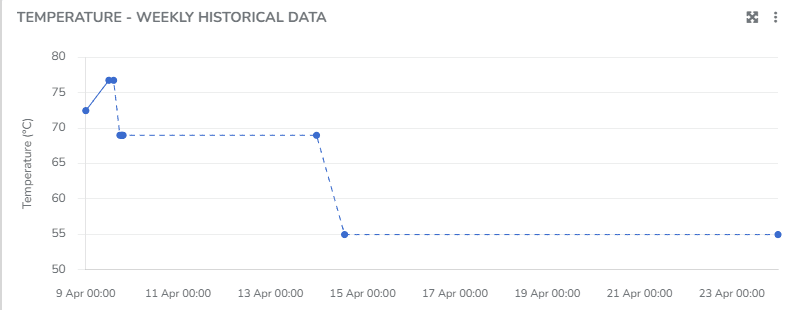

Historical line chart showing weekly temperature values of an endpoint

You can view information corresponding to states when the Endpoint was connected, as well as when it was disconnected. You can choose to display the grid line direction, endpoint labels, minimum/maximum/average values, use custom colors, and apply the available filters.

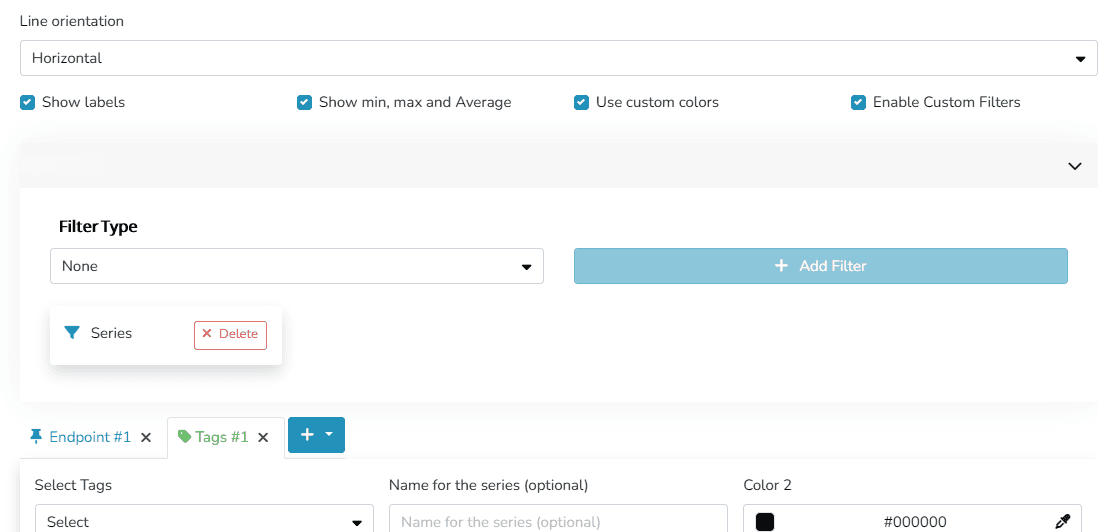

Display configuration options and filters in the history widget

The user can organize the information and visualization of these charts through different criteria within the Widget:

You can choose to display information either by identifying one or more endpoints of the same type, or by labels associated with those endpoints.

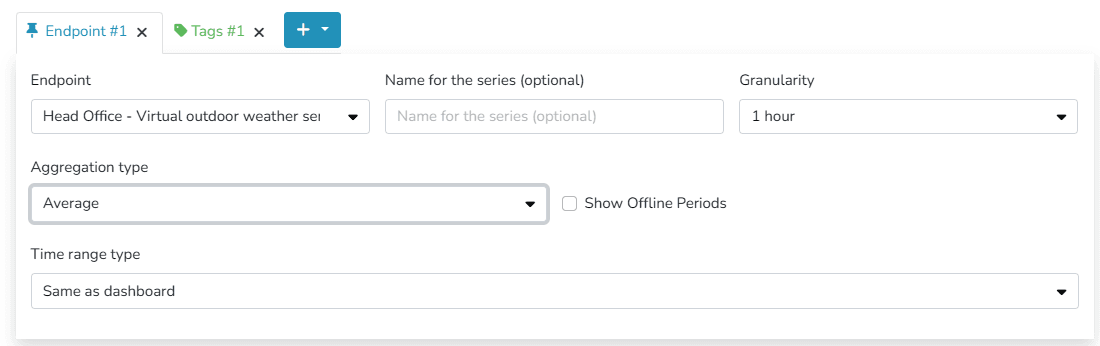

History widget settings with endpoint and tag tabs, granularity and aggregation type

Additionally, there is an option to define different Comfort Zones within the allowed value ranges for the endpoint.

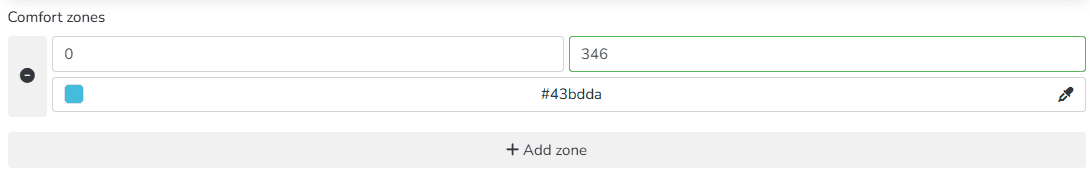

Configuration of ranges and color for a comfort zone
