Widgets with Comfort Zone

The Cloud Studio platform features a series of specific widgets for branch monitoring, energy consumption, power history, consumption, weather data, and more, for use in dashboards configurable by the end user.

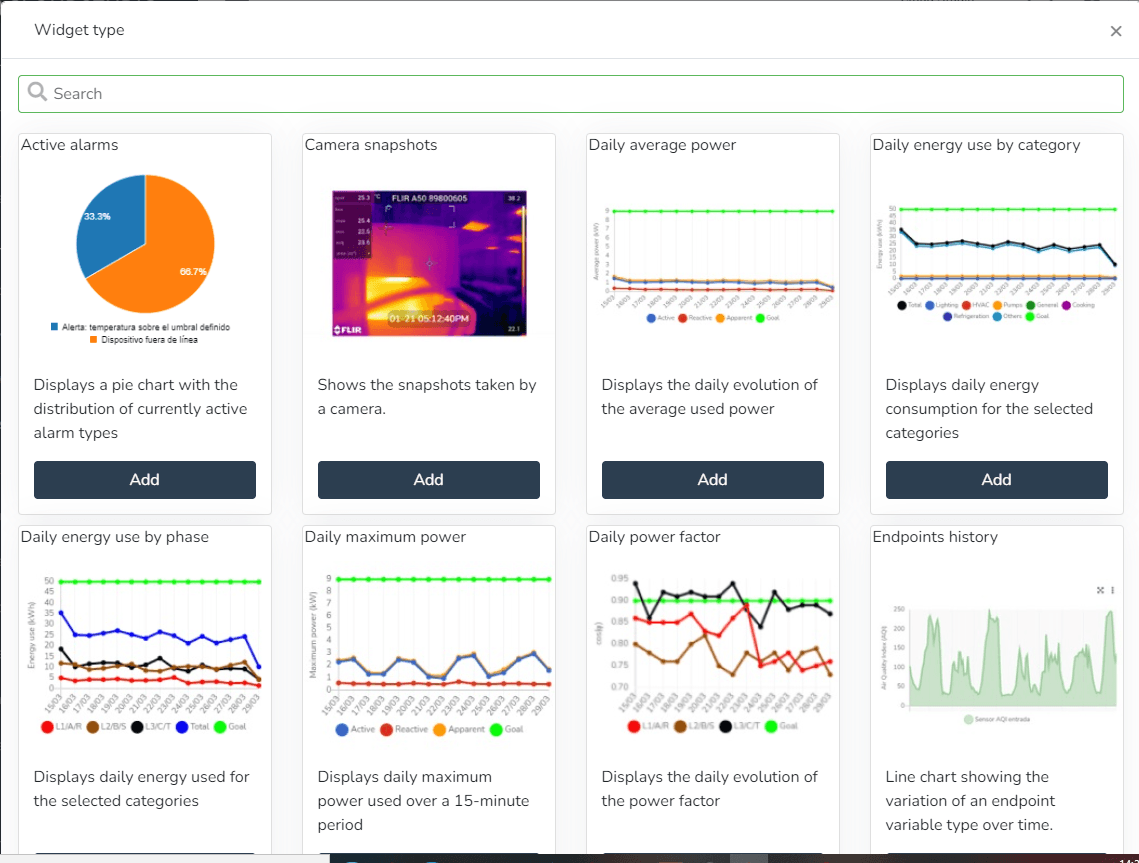

Widget type dialog with a search box and previews of the available widgets

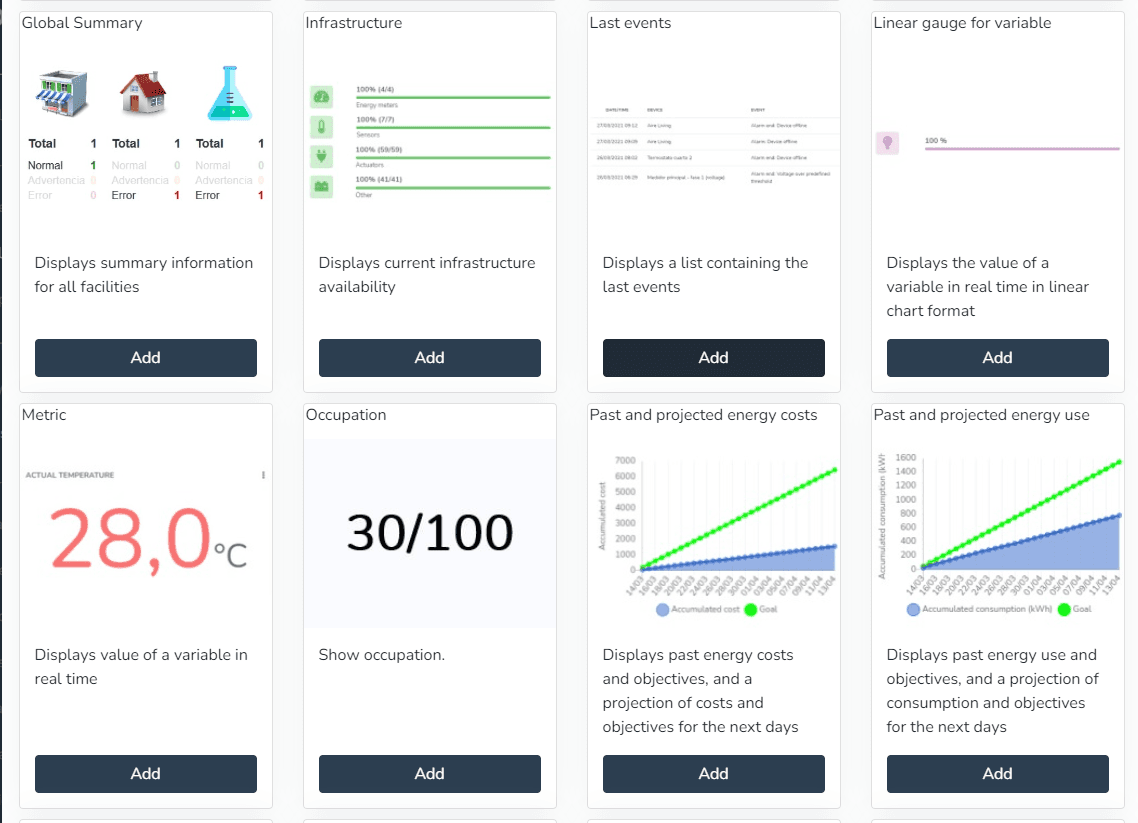

Widget catalog with global summary, infrastructure, last events, metric, occupancy and projected energy cards

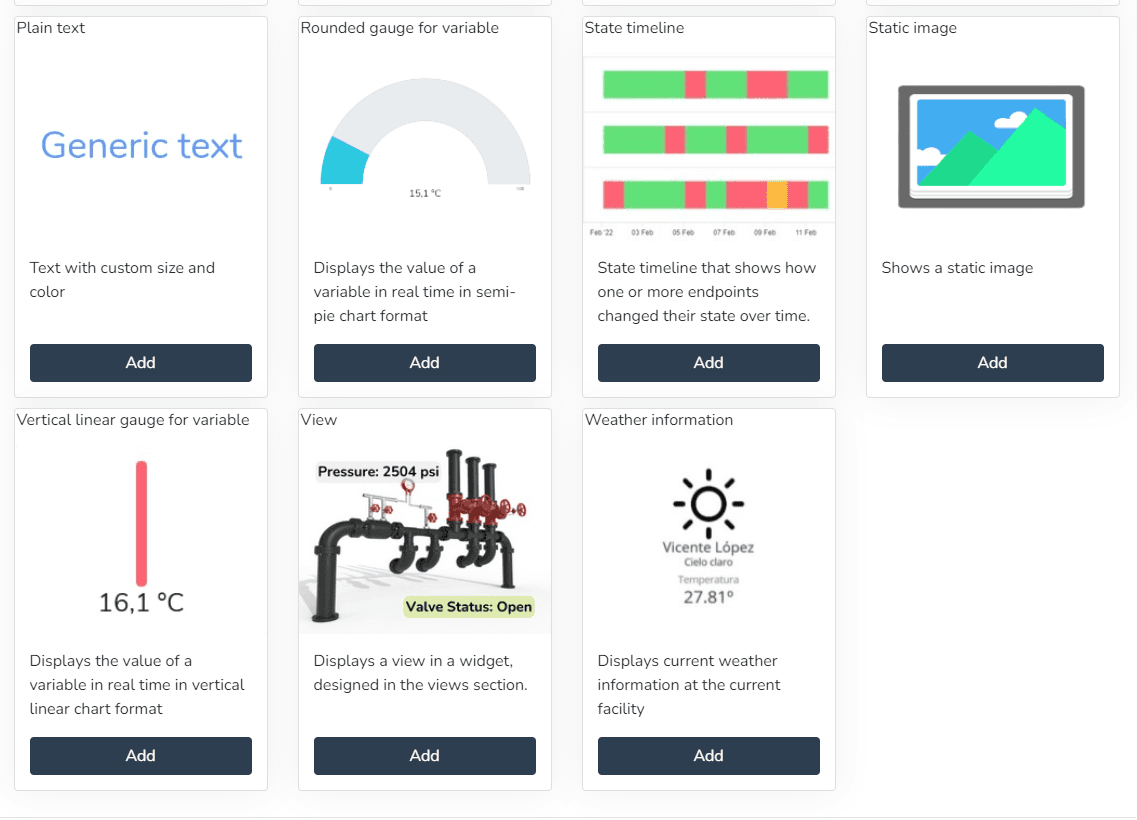

Available widget cards such as plain text, rounded gauge, state timeline, view and weather information

  • Active alarms (Displays a pie chart with the distribution of currently active alarm types)
  • Past and projected energy consumption (Displays past energy consumption and targets, as well as a projection of consumption and targets for the coming days)
  • Energy consumption by category (Displays energy consumption for selected categories)
  • Energy consumption by phase (Pie chart showing energy consumption by phase)
  • Daily energy consumption by category (Displays daily energy consumption for selected categories)
  • Daily consumption by phase (Displays daily consumption by phase for selected categories)
  • Energy cost by category (Displays energy cost for selected categories)
  • Past and projected energy costs (Displays past energy costs and targets, as well as a projection of costs and targets for the coming days)
  • Weather status (Displays the weather status at the current facility)
  • Daily power factor (Displays the daily evolution of the power factor)
  • Infrastructure (Displays the current availability of the infrastructure)
  • Facility map (Displays a map containing the location of the current facility)
  • Energy consumption targets (Displays energy consumption information relative to defined targets)
  • Daily maximum power (Displays the maximum daily power used in a 15-minute period)
  • Daily average power (Displays the daily evolution of the power used)
  • Facility summary (Displays summary information for the current facility)
  • Global summary (Displays summary information for all facilities)
  • Latest events (Displays a list with the latest events)
  • Camera snapshots (Displays snapshots taken by a camera)
  • Endpoint history (Line chart showing the variation of an endpoint variable type over time)
  • Comparative endpoint history (Line chart showing the comparative variation of two endpoint variable types over time)
  • Facility list (Displays a list containing facility information)
  • World summary (Displays summary information for all facilities)
  • Infrastructure (Displays the current availability of the infrastructure)
  • Latest events (Displays a list containing the latest items)
  • Linear gauge for variable (Displays the value of a variable in real time as a linear chart)
  • Metric (Displays the value of a variable in real time)
  • Occupancy (Displays the occupancy)
  • Plain text (Displays text with custom colors and formatting)
  • Rounded gauge for variable (Displays the value of a variable in real time as a semicircular chart)
  • State timeline (State timeline showing how one or more endpoints changed their state over time.)
  • Static image (Displays a static image)
  • Vertical linear indicator for variable (Displays the value of a variable in real time as a vertical linear chart)
  • View (Displays a view in a widget, designed in the views section)
  • Weather information (Displays the current weather information at the current facility)

Active Alarms:

The user can use this Widget to create a pie chart with the distribution of currently active alarm types.

Preview and button to add the Active alarms widget with a pie chart

Active Alarms widget settings with title, margins and scope set to Global

Camera Snapshots:

The user can use this Widget to view snapshots taken by a camera.

Preview and button to add the Camera snapshots widget

Camera Snapshots widget settings with endpoint and timestamp position fields

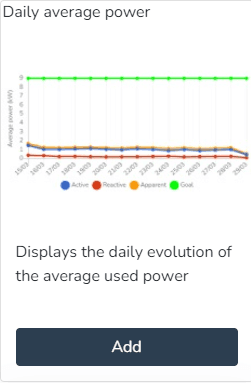

Daily Average Power:

The user can use this Widget to view the daily evolution of the power used.

Preview and button to add the Daily average power widget

Daily Average Power widget settings with title, margins and scope

Daily Energy Consumption by Category:

The user can use this Widget to view the daily energy consumption for selected categories.

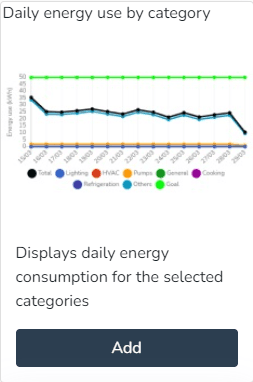

Preview and button to add the Daily Energy Consumption by Category widget

Daily Energy Consumption by Category widget settings with scope and metering categories

Daily Energy Consumption by Phase:

The user can use this Widget to view the daily energy used for selected categories.

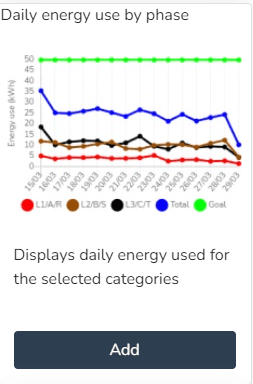

Preview and button to add the Daily energy use by phase widget

Daily Energy Consumption by Phase widget settings with scope, summation and metering categories

Daily Maximum Power:

The user can use this Widget to view the maximum daily power used in a 15-minute period.

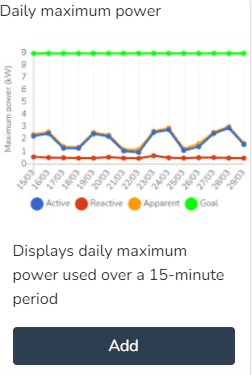

Preview and button to add the Daily Maximum Power widget

Daily Maximum Power widget settings with title, navigation and margin fields

Daily Power Factor:

The user can use this Widget to view the daily evolution of the power factor.

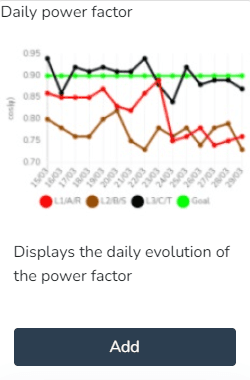

Preview and button to add the Daily power factor widget

Daily Power Factor:

The user can use this Widget to view the daily evolution of the power factor.

Daily Power Factor widget settings with margins and scope set to Global

Endpoint History:

The user can use this Widget to generate a line chart showing the variation of an endpoint variable type over time.

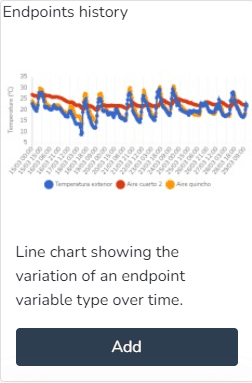

Preview and button to add the Endpoints history widget with a line chart

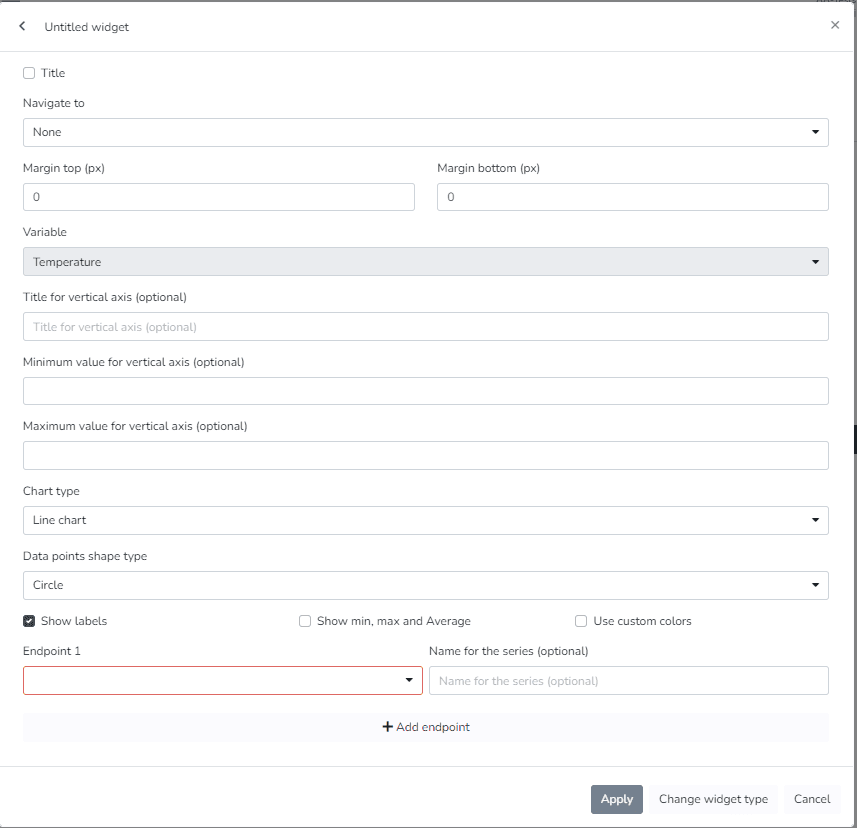

Endpoint History widget settings with variable, vertical axis, chart type and endpoint fields

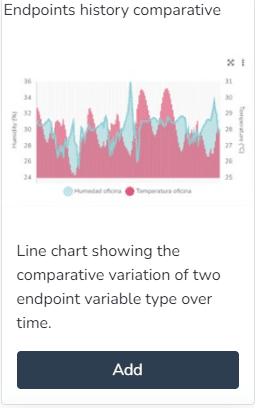

Comparative Endpoint History:

The user can use this Widget to generate a line chart showing the comparative variation of two endpoint variable types over time.

Preview and button to add the Comparative endpoints history widget

Comparative Endpoint History widget settings with left and right axis tabs

Energy Consumption Targets:

The user can use this Widget to view current energy consumption data relative to defined targets.

Preview and button to add the Energy consumption goals widget with two gauges

Energy Consumption Targets widget settings with margins and scope set to Global

Energy Consumption Targets:

The user can use this Widget to view the energy cost for selected categories.

Preview and button to add the Energy cost by category widget

Energy Consumption Targets widget settings with scope and metering categories

Energy Consumption by Category:

The user can use this Widget to view energy consumption for selected categories.

Preview and button to add the Energy use by category widget

Energy Consumption by Category widget settings with scope and metering categories

Energy Consumption by Phase:

The user can use this Widget to view a pie chart showing energy usage by phase.

Preview and button to add the Energy Consumption by Phase widget

Energy Consumption by Phase widget settings with scope, summation and metering categories

Energy Consumption by Phase:

The user can use this Widget to view a list containing facility information.

Preview and button to add the Facility List widget

Widget settings with the facilities selector and the Default checkbox

Facility Map:

The user can use this Widget to view a map containing the location of the current facility.

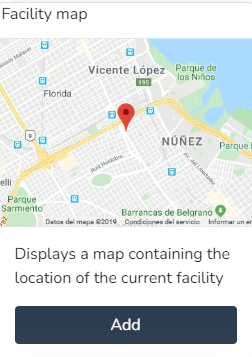

Preview and button to add the Facility map widget showing the facility location

Facility Map widget settings with facility selector, commercial pins and satellite view options

Facility Summary:

The user can use this Widget to view summary information for the current facility.

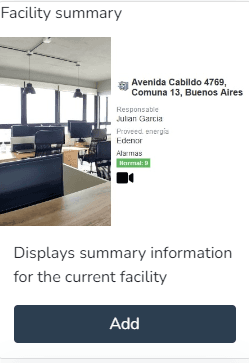

Preview and button to add the Facility summary widget with photo and details

Facility Summary widget settings with title, navigation target and margins

World Summary:

The user can use this Widget to view summary information for all facilities.

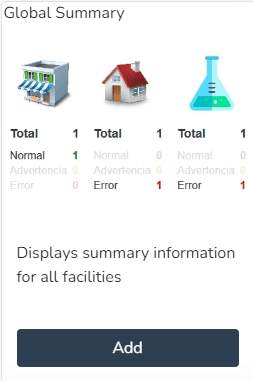

Preview and button to add the World Summary widget

World Summary widget settings with title, navigation and margin fields

Infrastructure:

The user can use this Widget to view the current availability of the infrastructure.

Preview and button to add the Infrastructure widget showing current availability

Infrastructure widget settings with title, margins and scope set to Global

Latest Events:

The user can use this Widget to view a list containing the latest events.

Preview and button to add the Last events widget with a list of recent events

Latest Events widget settings with title, margins and scope set to Global

Linear Gauge for Variable:

The user can use this Widget to view the value of a variable in real time as a linear chart.

Preview and button to add the Linear gauge for variable widget

Linear Gauge for Variable settings with minimum, maximum, endpoint and colors by range

Metric:

The user can use this Widget to view the value of a variable in real time.

Preview and button to add the Metric widget

Metric widget settings with variable, endpoint, default color and colors by range

Occupancy:

The user can use this Widget to view the occupancy.

Preview and button to add the Occupancy widget showing current occupancy

Occupancy widget settings with statuses, sensors and a pie chart option

Past and Projected Energy Costs:

The user can use this Widget to view past energy costs and targets, and a projection of costs and targets for the coming days.

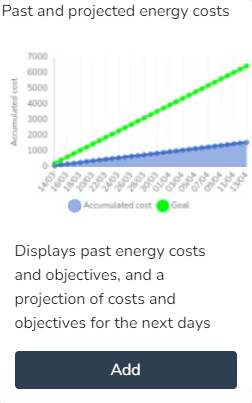

Preview and button to add the Past and Projected Energy Costs widget

Past and Projected Energy Costs widget settings with margins and scope set to Global

Past and Projected Energy Consumption:

The user can use this Widget to view past energy consumption and targets, and a projection of consumption and targets for the coming days.

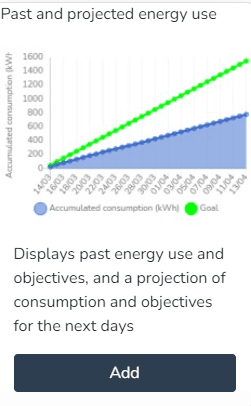

Preview and button to add the Past and Projected Energy Consumption widget

Past and Projected Energy Consumption widget settings with margins and scope set to Global

Plain Text:

The user can use this Widget to enter text with custom colors and sizes.

Preview and button to add the Plain Text widget

Plain Text widget settings with text, language, font size and color fields

Rounded Gauge for Variable:

The user can use this Widget to view the value of a variable in real time as a semicircular chart.

Preview and button to add the Rounded Gauge for Variable widget

Rounded gauge widget settings with minimum, maximum, variable, endpoint and color ranges

State Timeline:

The user can use this Widget to view a state timeline showing how one or more endpoints changed their state over time.

Preview and button to add the State timeline widget for endpoints

State Timeline widget settings with variable, bar height, legend and endpoints

Static Image:

The user can use this Widget to view a static image.

Preview and button to add the Static Image widget

Static Image widget settings with an image file selector

Vertical Linear Indicator for Variable:

The user can use this Widget to view the value of a variable in real time as a vertical linear chart.

Preview and button to add the Vertical Linear Indicator for Variable widget

Vertical linear indicator widget settings with minimum, maximum, variable, format and color ranges

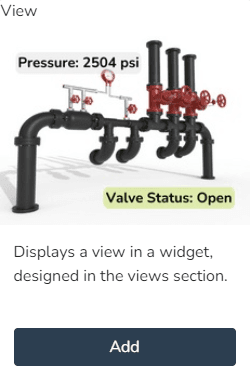

Views:

The user can use this Widget to view a view in a widget, designed in the views section.

Preview and button to add the View widget showing a designed view

Views widget settings with a view selector, title and margins

Weather Information:

The user can use this Widget to view the current weather information at the current facility.

Preview and button to add the Weather information widget for the current facility

Weather Information widget settings with title, navigation target and margins

Dashboard Widgets (Monitor)

In the monitor, the dashboard can be configured to the client's needs using any combination of the available widgets:

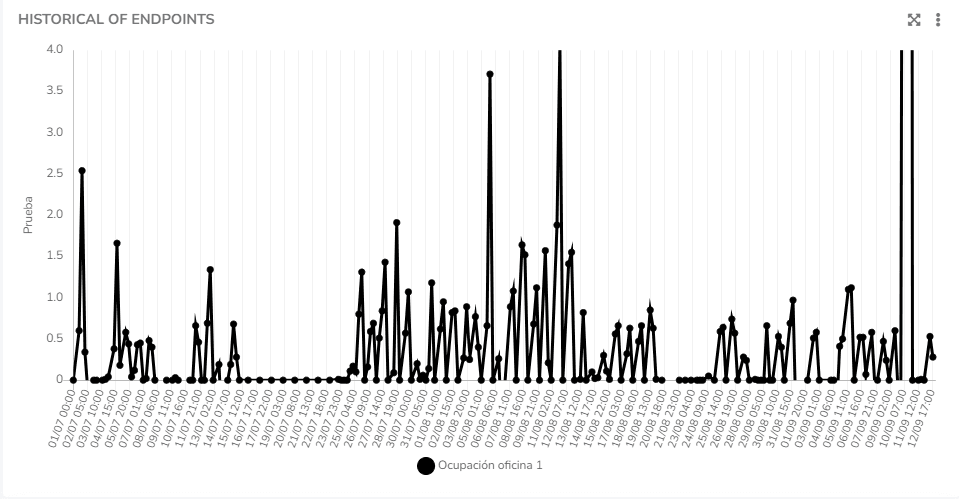

Endpoint History Widget:

Line chart showing the variation of an endpoint variable type over time. In endpoint history charts, the user can enter minimum and maximum values to define the Y-axis ranges, as well as modify the variable names associated with the Y-axis titles.

Dashboard

Endpoint history line chart with a custom Y-axis title and series name

  • The user can edit the minimum and maximum values that define the Y-axis ranges of the charts.

Y-axis minimum and maximum values in a history chart

This is a visualization of the minimum and maximum values that define the Y-axis ranges of the charts.

  • The user can define Comfort Zones for history charts. This allows configuring value ranges where measurements are expected. It is for visualization purposes and multiple zones can be configured for the same chart.

History chart on a dashboard with two comfort zones shown as colored bands

The user can also define Comfort Zones for the Comparative History Widget.

Comparative chart with two Y axes and green and yellow comfort zones

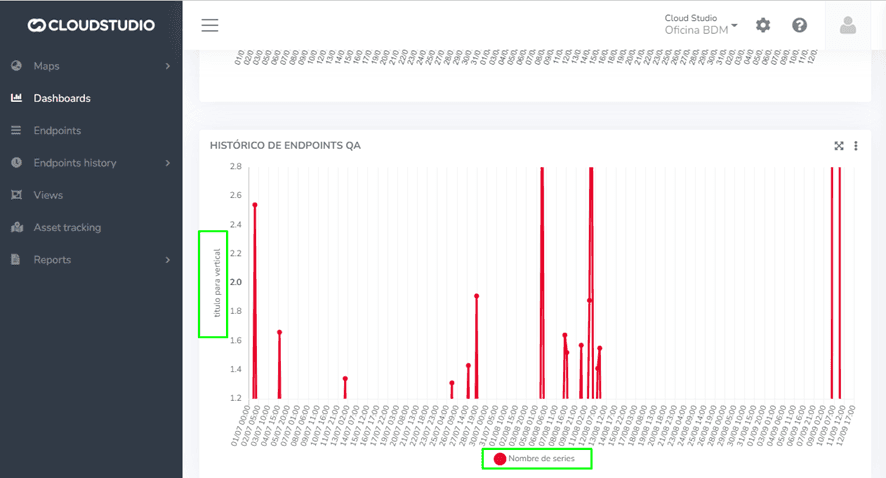

  • The user can modify the Y-axis titles (instead of displaying the variable type names).

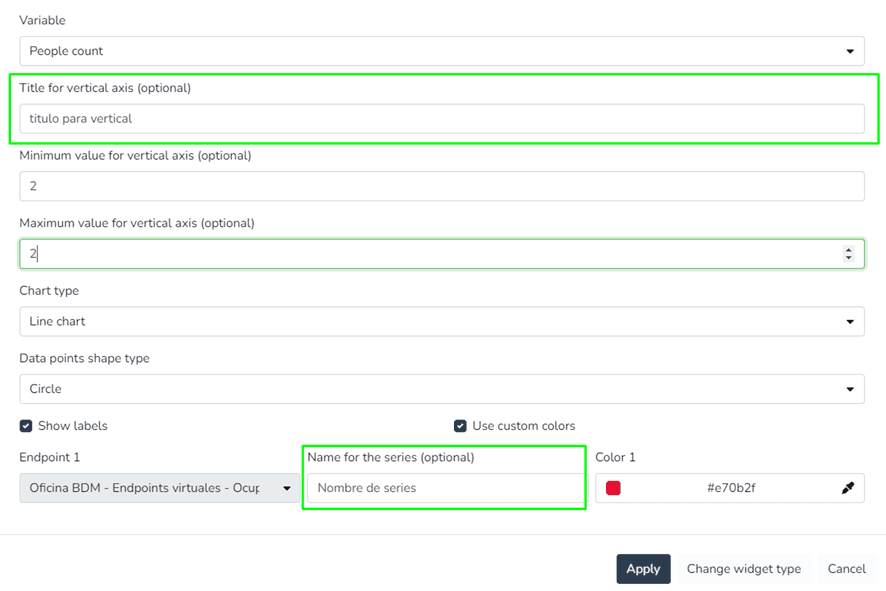

Widget settings form with the vertical axis title and series name fields highlighted

Endpoint history chart with a custom Y-axis title and series name highlighted

  • The user can view the tooltips of history charts, which display all data points associated with an X position.

History chart tooltip showing the data points at one X position

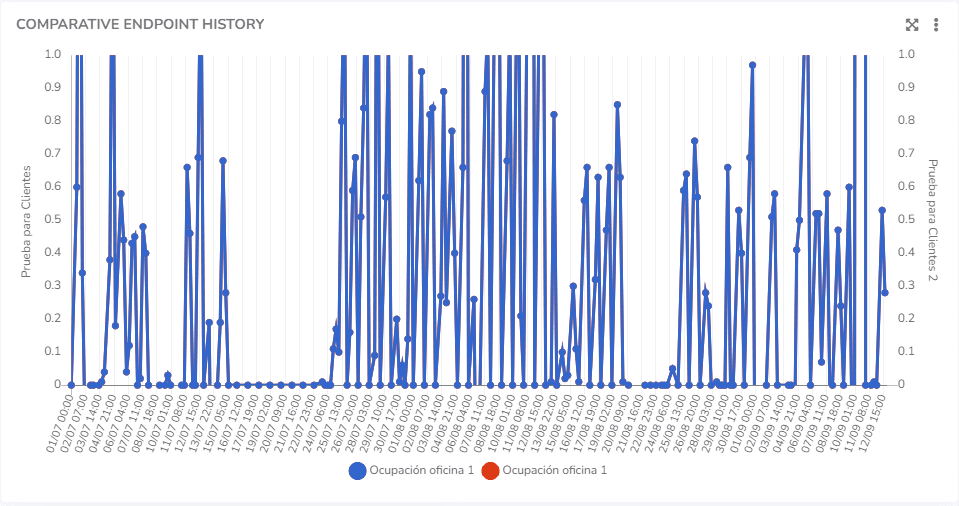

Comparative Endpoint History Widget:

Endpoint history charts where the user can enter minimum and maximum values to define the Y-axis ranges, as well as modify the variable names associated with the Y-axis titles.

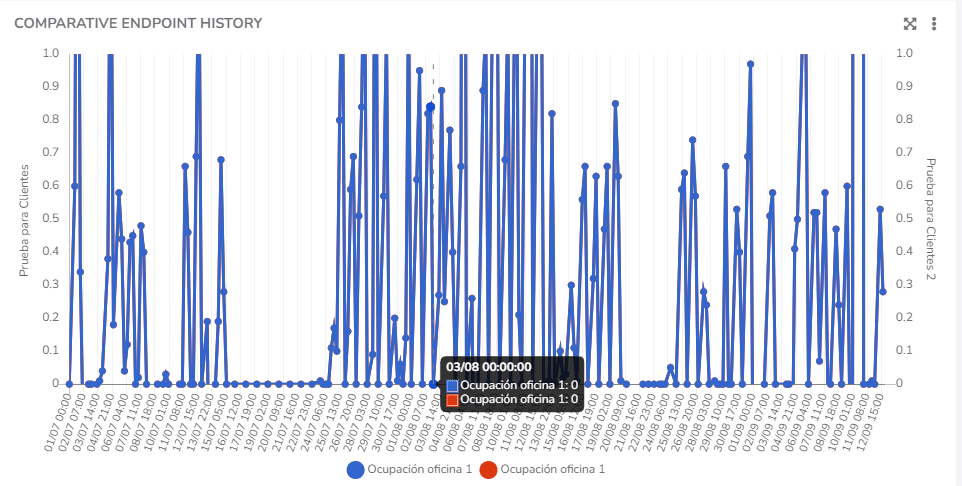

Comparative Endpoint History chart with two Y axes and custom axis titles

The user can edit the minimum and maximum values that define the Y-axis ranges of the charts.

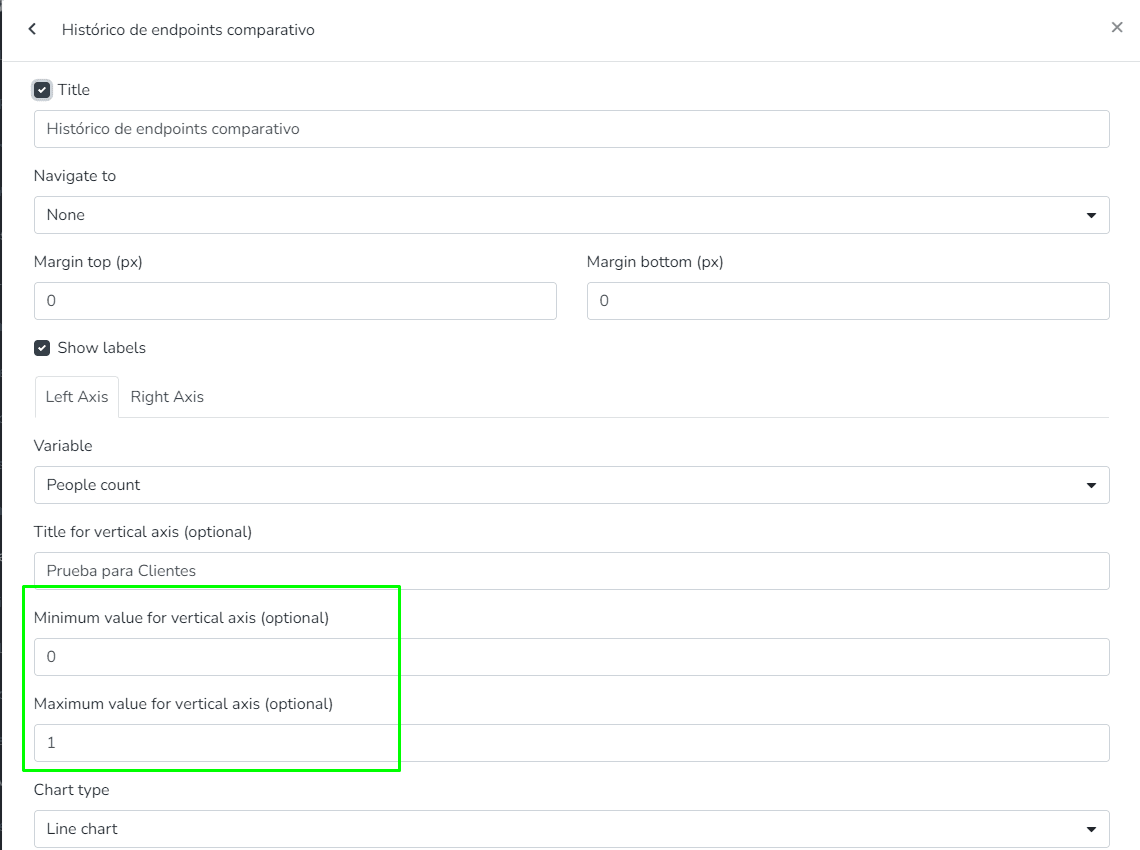

Comparative endpoint history settings with minimum and maximum vertical axis values highlighted

The user can modify the Y-axis titles (instead of displaying the variable type names).

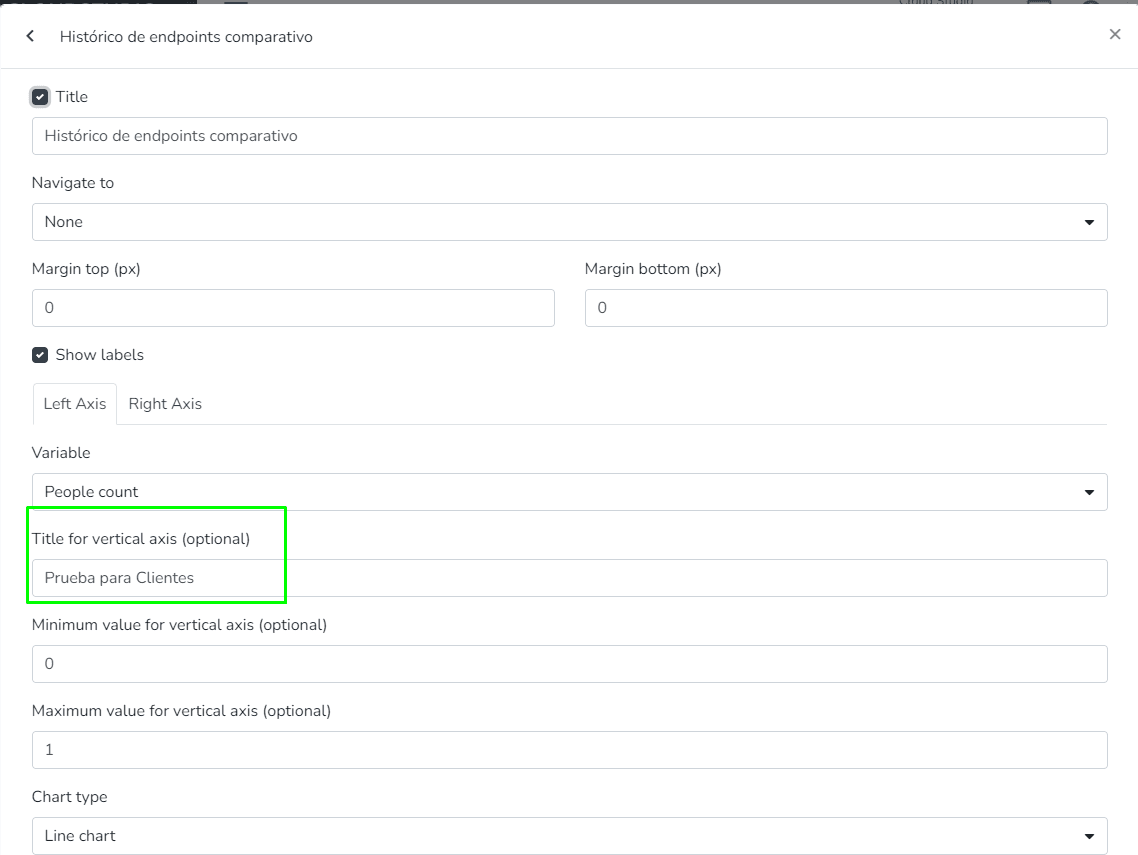

Comparative endpoint history settings with the vertical axis title field highlighted

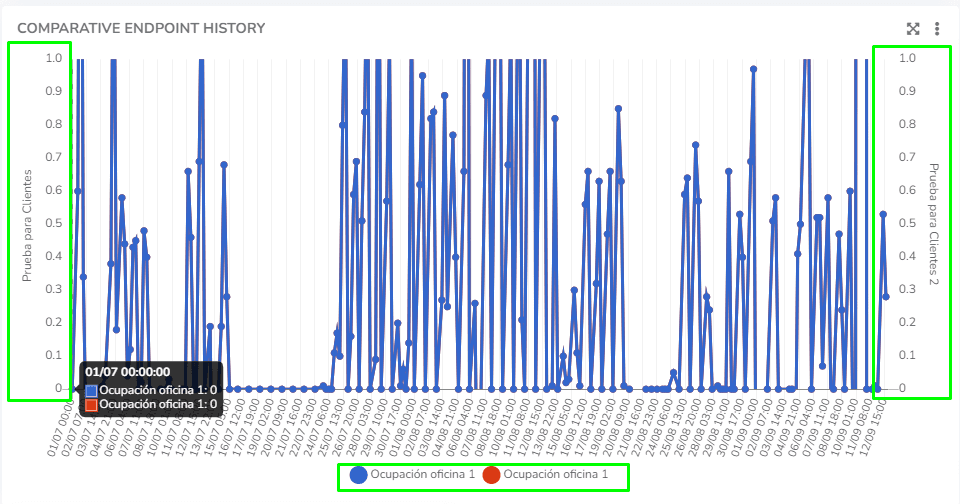

Comparative endpoint history chart with the custom Y-axis titles highlighted

The user can view the tooltips of history charts, which display all data points associated with an X position.

Comparative endpoint history chart with a tooltip showing all points at one X position

Last updated on

On this page
