Report the Geographic Location of a Device
This method allows updating the current location of the device on the platform. Location history is not stored.
The HTTP device location update uses the following structure:
POST /services/gear/DeviceIntegrationService.svc/UpdateDeviceGeolocation HTTP/1.1
Host: gear.cloud.studio
Content-Type: application/json
{
"accessToken": "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
"deviceID": 1,
"latitude": 40.4052,
"longitude": -3.87699
}Parameters
| Name | Description | Data Type |
|---|---|---|
| accessToken | Access token with permissions to update endpoint information. See this page for more information. | text |
| deviceID | Unique device identifier or device address in format [deviceAddress] (e.g.: [device-1234]). These values can be found on the device management page. | number |
| latitude | Indicates the latitude of the device's current location. | number |
| longitude | Indicates the longitude of the device's current location. | number |
Example

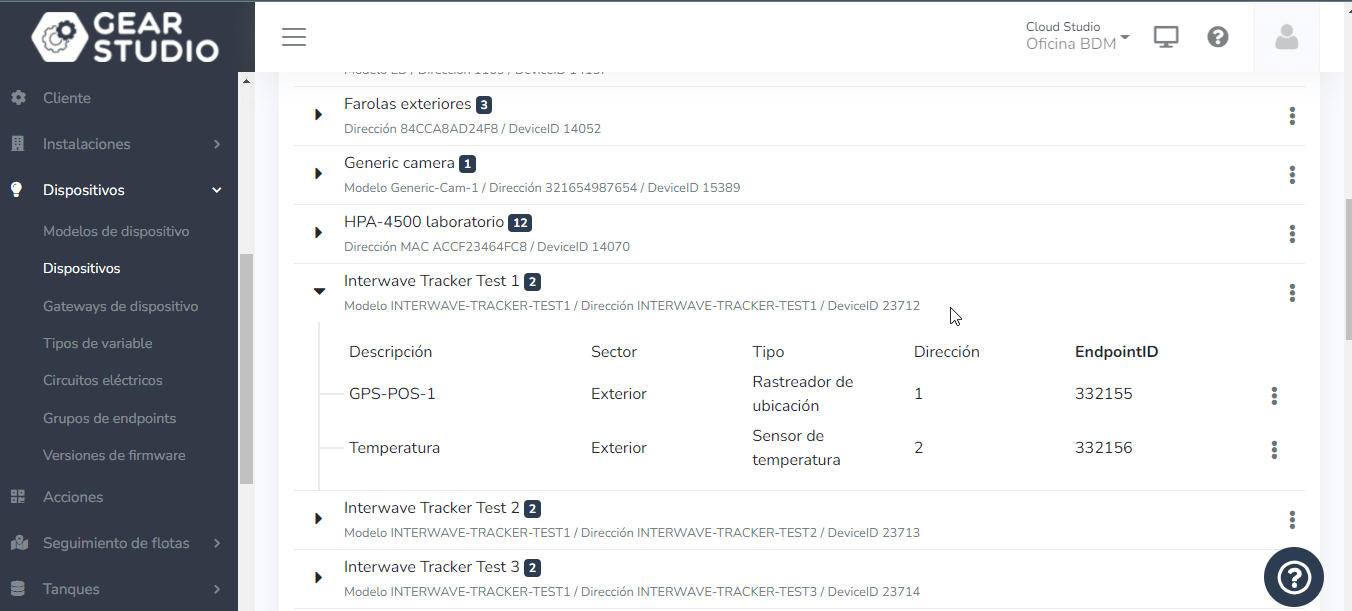

We choose a device to modify; in this case, we choose one named "Interwave Tracker Test 1". The parameter we need is the device's "DeviceID", which in this case is "23712".
Open Postman and use the "UpdateDeviceGeolocation" method, enter the accessToken, the DeviceId (which in this case is 23712), and then send the longitude and latitude of the device. Once the data is loaded, press "Send" and the device will change position.
_fac2.png&w=3840&q=75&dpl=dpl_Cujn5e4HF3uUcBpsiVcAymmwNeb3)

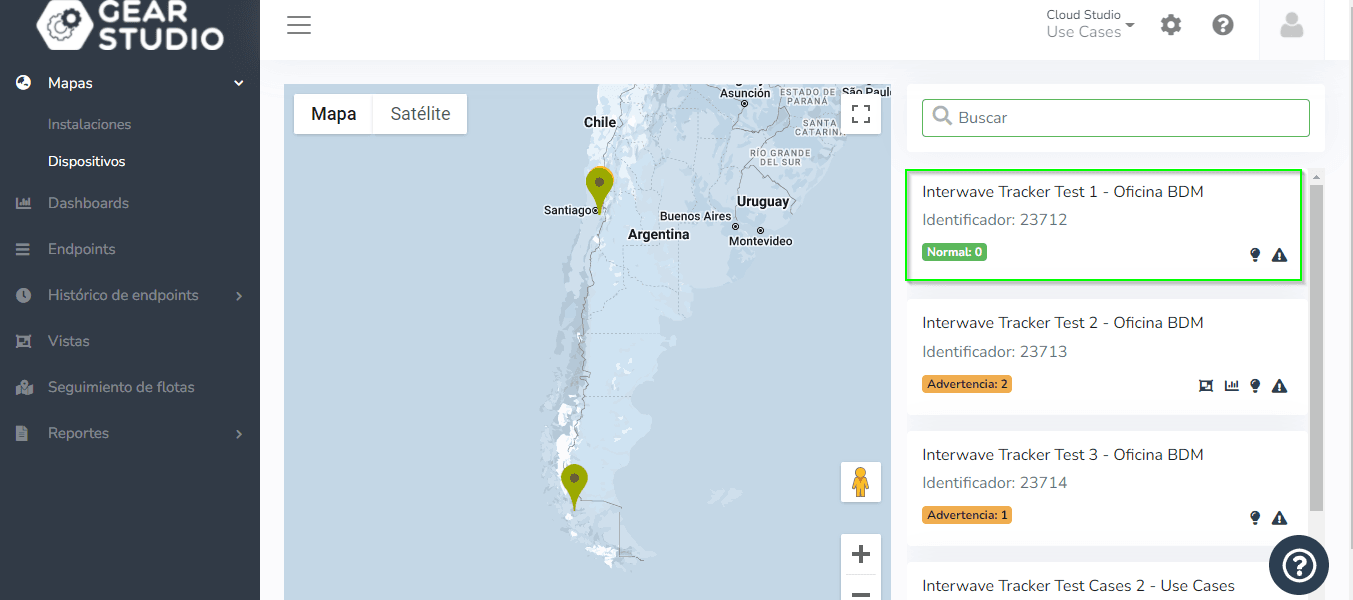

This position change can be viewed on the device map.
État de batterie et RSSI
Signaler l'état RSSI et/ou le niveau de batterie d'un appareil. Cette méthode ne stocke pas l'historique de l'état ; elle prend uniquement la dernière valeur rapportée et l'affiche sur la plateforme.
Réception et confirmation des commandes
Flux d'intégration de commande de base La passerelle, l'appareil ou l'endpoint doit être à l'écoute des commandes en exécutant la méthode correspondante. Un mécanisme de long polling est utilisé à cette fin.
