Current and energy meter

Watteco Triphas'O LoRaWAN decoder and payload format

The Watteco Triphas'O is a LoRaWAN current and energy meter that reports energy. It is rated IP20 and it works from -20 to 55 °C.

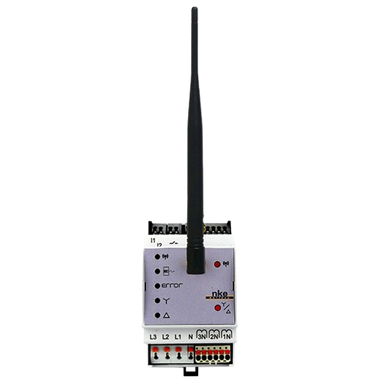

Watteco Triphas'O
Official decoderDatasheetProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 125

Payload (hex)

11 0A 80 0D 00 00 41 12 08 A1 00 52 00 03 08 A2 00 42 00 40 08 A3 00 32 00 30

Decoded (JSON)

{
  "samples": [
    {
      "variable": "Vrms_a",
      "value": 220.9,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "Irms_a",
      "value": 8.2,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "angle_a",
      "value": 3,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "Vrms_b",
      "value": 221,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "Irms_b",
      "value": 6.6,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "angle_b",
      "value": 64,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "Vrms_c",
      "value": 221.1,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "Irms_c",
      "value": 5,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "angle_c",
      "value": 48,
      "date": "2023-07-19T07:51:25.508306410Z"
    }
  ],
  "Vrms_a": 220.9,
  "Irms_a": 8.2,
  "angle_a": 3,
  "Vrms_b": 221,
  "Irms_b": 6.6,
  "angle_b": 64,
  "Vrms_c": 221.1,
  "Irms_c": 5,
  "angle_c": 48
}
FieldValue
samples[{"variable":"Vrms_a","value":220.9,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"Irms_a","value":8.2,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"angle_a","value":3,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"Vrms_b","value":221,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"Irms_b","value":6.6,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"angle_b","value":64,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"Vrms_c","value":221.1,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"Irms_c","value":5,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"angle_c","value":48,"date":"2023-07-19T07:51:25.508306410Z"}]
Vrms_a220.9
Irms_a8.2
angle_a3
Vrms_b221
Irms_b6.6
angle_b64
Vrms_c221.1
Irms_c5
angle_c48

Example 2 · fPort 125

Payload (hex)

11 8A 80 0D 00 00 41 12 09 75 01 0C 01 61 09 74 01 5E 01 53 09 83 01 61 01 50 A0 D0 00 00 32 00 00 01 D1 01 00 05 00 00 01 B2 08 01 5E 00 00 01

Decoded (JSON)

{
  "samples": [
    {
      "variable": "Vrms_a",
      "value": 242.1,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "Irms_a",
      "value": 26.8,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "angle_a",
      "value": 353,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "Vrms_b",
      "value": 242,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "Irms_b",
      "value": 35,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "angle_b",
      "value": 339,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "Vrms_c",
      "value": 243.5,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "Irms_c",
      "value": 35.3,
      "date": "2023-07-19T07:51:25.508306410Z"
    },
    {
      "variable": "angle_c",
      "value": 336,
      "date": "2023-07-19T07:51:25.508306410Z"
    }
  ],
  "Vrms_a": 242.1,
  "Irms_a": 26.8,
  "angle_a": 353,
  "Vrms_b": 242,
  "Irms_b": 35,
  "angle_b": 339,
  "Vrms_c": 243.5,
  "Irms_c": 35.3,
  "angle_c": 336
}
FieldValue
samples[{"variable":"Vrms_a","value":242.1,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"Irms_a","value":26.8,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"angle_a","value":353,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"Vrms_b","value":242,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"Irms_b","value":35,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"angle_b","value":339,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"Vrms_c","value":243.5,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"Irms_c","value":35.3,"date":"2023-07-19T07:51:25.508306410Z"},{"variable":"angle_c","value":336,"date":"2023-07-19T07:51:25.508306410Z"}]
Vrms_a242.1
Irms_a26.8
angle_a353
Vrms_b242
Irms_b35
angle_b339
Vrms_c243.5
Irms_c35.3
angle_c336

Specifications

Manufacturer
Watteco
Model
Triphas'O
Type
Current and energy meter
Measures
energy
Protection
IP20
Operating temperature
-20 … 55 °C
LoRaWAN regions
EU863-870

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.

See your Watteco Triphas'O on a dashboard

Start a free trial, add the device with its DevEUI and get dashboards and alarms from its next uplink.
