Temperature and humidity sensor

Watteco TH Indoor Sensor LoRaWAN decoder and payload format

The Watteco TH Indoor Sensor is a LoRaWAN temperature and humidity sensor that reports temperature and humidity. It is rated IP30, it runs on a replaceable AA battery and it works from 0 to 55 °C.

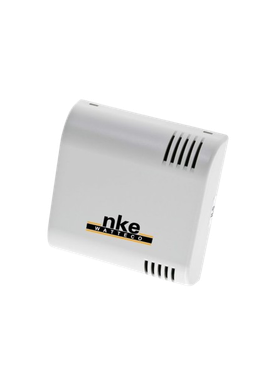

Watteco TH Indoor Sensor
Official decoderDatasheetProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 125

Payload (hex)

36 21 00 80 80 98 C3 1E CB 82 4D 7B 07 BA 3D

Decoded (JSON)

{
  "samples": [
    {
      "variable": "temperature",
      "value": 28.7,
      "date": "2023-07-18T12:19:53.243Z"
    },
    {
      "variable": "humidity",
      "value": 37,
      "date": "2023-07-18T12:19:53.243Z"
    },
    {
      "variable": "battery_voltage",
      "value": 3.707,
      "date": "2023-07-18T12:19:52.243Z"
    }
  ],
  "temperature": 28.7,
  "humidity": 37,
  "battery_voltage": 3.707
}
FieldValue
samples[{"variable":"temperature","value":28.7,"date":"2023-07-18T12:19:53.243Z"},{"variable":"humidity","value":37,"date":"2023-07-18T12:19:53.243Z"},{"variable":"battery_voltage","value":3.707,"date":"2023-07-18T12:19:52.243Z"}]
temperature28.7
humidity37
battery_voltage3.707

Example 2 · fPort 125

Payload (hex)

11 0A 04 05 00 00 21 0E 89

Decoded (JSON)

{
  "samples": [
    {
      "variable": "humidity",
      "value": 37.21,
      "date": "2023-07-19T07:51:25.508306410Z"
    }
  ],
  "humidity": 37.21
}
FieldValue
samples[{"variable":"humidity","value":37.21,"date":"2023-07-19T07:51:25.508306410Z"}]
humidity37.21

Specifications

Manufacturer
Watteco
Model
TH Indoor Sensor
Type
Temperature and humidity sensor
Measures
temperature, humidity
Protection
IP30
Battery
AA (replaceable)
Operating temperature
0 … 55 °C
LoRaWAN regions
EU863-870

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.

See your Watteco TH Indoor Sensor on a dashboard

Start a free trial, add the device with its DevEUI and get dashboards and alarms from its next uplink.
