I/O and Modbus controller

Watteco Press'O LoRaWAN decoder and payload format

The Watteco Press'O is a LoRaWAN I/O and Modbus controller that reports pulse count, analog inputs, 4-20 mA signal and digital inputs. It is rated IP55, it runs on a replaceable A battery and it works from -20 to 50 °C.

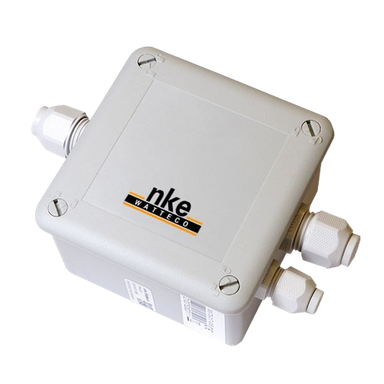

Watteco Press'O
Official decoderDatasheetProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 125

Payload (hex)

11 0A 00 0F 04 02 23 00 00 00 00

Decoded (JSON)

{
  "samples": [
    {
      "variable": "index",
      "value": 0,
      "date": "2023-07-19T07:51:25.508306410Z"
    }
  ],
  "index": 0
}
FieldValue
samples[{"variable":"index","value":0,"date":"2023-07-19T07:51:25.508306410Z"}]
index0

Example 2 · fPort 125

Payload (hex)

31 0A 00 0C 00 55 39 41 50 00 00

Decoded (JSON)

{
  "samples": [
    {
      "variable": "0_10_V",
      "value": 13,
      "date": "2023-07-19T07:51:25.508306410Z"
    }
  ],
  "0_10_V": 13
}
FieldValue
samples[{"variable":"0_10_V","value":13,"date":"2023-07-19T07:51:25.508306410Z"}]
0_10_V13

Specifications

Manufacturer
Watteco
Model
Press'O
Type
I/O and Modbus controller
Measures
pulse count, analog inputs, 4-20 mA signal, digital inputs
Protection
IP55
Battery
A (replaceable)
Operating temperature
-20 … 50 °C
LoRaWAN regions
EU863-870

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.
