Soil sensor

Tinovi PM-IO-5-SM LoRaWAN decoder and payload format

The Tinovi PM-IO-5-SM is a LoRaWAN soil sensor that reports pulse count, humidity, pressure, temperature and moisture. It is rated IP67, it runs on a replaceable 3.7v Lithium 18650 battery and it works from -30 to 85 °C.

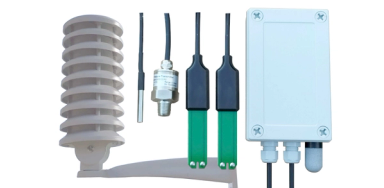

Tinovi PM-IO-5-SM
Official decoderDatasheetProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 1

Payload (hex)

01 3F 00 00 00 00 00 00 00 00 00

Decoded (JSON)

{
  "bat": 63,
  "e25": 0,
  "ec": 0,
  "leak": 0,
  "temp": 0,
  "valv": 0,
  "vwc": 0
}
FieldValue
bat63
e250
ec0
leak0
temp0
valv0
vwc0

Example 2 · fPort 1

Payload (hex)

01 4D 00 00 00 00 00 00 00 00 00

Decoded (JSON)

{
  "bat": 77,
  "e25": 0,
  "ec": 0,
  "leak": 0,
  "temp": 0,
  "valv": 0,
  "vwc": 0
}
FieldValue
bat77
e250
ec0
leak0
temp0
valv0
vwc0

Specifications

Manufacturer
Tinovi
Model
PM-IO-5-SM
Type
Soil sensor
Measures
pulse count, humidity, pressure, temperature, moisture
Protection
IP67
Battery
3.7v Lithium 18650 (replaceable)
Operating temperature
-30 … 85 °C
LoRaWAN regions
EU863-870, US902-928, AS923, AU915-928, KR920-923, IN865-867

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.

See your Tinovi PM-IO-5-SM on a dashboard

Start a free trial, add the device with its DevEUI and get dashboards and alarms from its next uplink.

Talk to us

Frequently asked questions

Device facts and decoder examples: The Things Network Device Repository (Apache-2.0) · commit 7693223, imported 2026-10-05.
