Occupancy and people counting sensor

Terabee People Occupancy Counting LoRaWAN decoder and payload format

The Terabee People Occupancy Counting is a LoRaWAN occupancy and people counting sensor that reports distance. It runs on a replaceable CR1220 battery and it works from 0 to 35 °C.

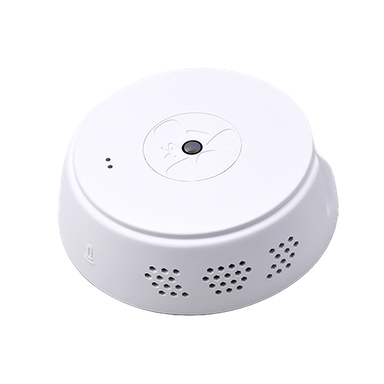

Terabee People Occupancy Counting
Official decoderProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 83

Payload (hex)

0F 05 03 04 02 01 00 FF FF FF

Decoded (JSON)

{
  "flags": {
    "STOPPED": 1,
    "STUCK": 1,
    "WIFI_ACCESS_POINT_ON": 1,
    "WARMUP": 1
  },
  "zone_global": 5,
  "zone_0": 3,
  "zone_1": 4,
  "zone_2": 2,
  "zone_3": 1,
  "zone_4": 0,
  "zone_5": "not set",
  "zone_6": "not set",
  "zone_7": "not set"
}
FieldValue
flags.STOPPED1
flags.STUCK1
flags.WIFI_ACCESS_POINT_ON1
flags.WARMUP1
zone_global5
zone_03
zone_14
zone_22
zone_31
zone_40
zone_5not set
zone_6not set
zone_7not set

Specifications

Manufacturer
Terabee
Model
People Occupancy Counting
Type
Occupancy and people counting sensor
Measures
distance
Battery
CR1220 (replaceable)
Operating temperature
0 … 35 °C
LoRaWAN regions
EU863-870, US902-928

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.

See your Terabee People Occupancy Counting on a dashboard

Start a free trial, add the device with its DevEUI and get dashboards and alarms from its next uplink.
