Temperature sensor

Sensative Strips Multisensor LoRaWAN decoder and payload format

The Sensative Strips Multisensor is a LoRaWAN temperature sensor that reports door opening, temperature, light, water leaks, humidity and infrared temperature.

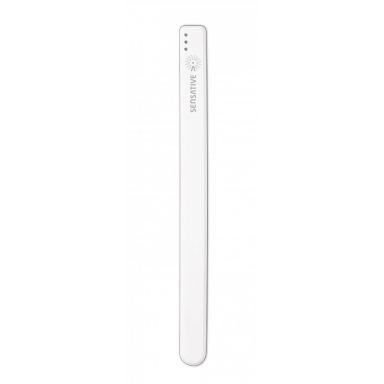

Sensative Strips Multisensor
Official decoderProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 1

Payload (hex)

FF FF 01 50 02 00 EA 03 00 0D 00 0E 00 10 00

Decoded (JSON)

{
  "battery": 80,
  "flood": {
    "value": 0
  },
  "floodAlarm": {
    "value": false
  },
  "historySeqNr": 65535,
  "prevHistSeqNr": 65535,
  "tempAlarm": {
    "highAlarm": false,
    "lowAlarm": false
  },
  "temperature": {
    "value": 23.4
  },
  "userSwitch1Alarm": {
    "value": false
  }
}
FieldValue
battery80
flood.value0
floodAlarm.valuefalse
historySeqNr65535
prevHistSeqNr65535
tempAlarm.highAlarmfalse
tempAlarm.lowAlarmfalse
temperature.value23.4
userSwitch1Alarm.valuefalse

Specifications

Manufacturer
Sensative
Model
Strips Multisensor
Type
Temperature sensor
Measures
door opening, temperature, light, water leaks, humidity, infrared temperature
LoRaWAN regions
EU863-870, US902-928

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.

See your Sensative Strips Multisensor on a dashboard

Start a free trial, add the device with its DevEUI and get dashboards and alarms from its next uplink.

Talk to us

Frequently asked questions

Device facts and decoder examples: The Things Network Device Repository (Apache-2.0) · commit 7693223, imported 2026-10-05.
