Level and distance sensor

Netvox RP02 LoRaWAN decoder and payload format

The Netvox RP02 is a LoRaWAN level and distance sensor that reports current and voltage. It works from -20 to 55 °C.

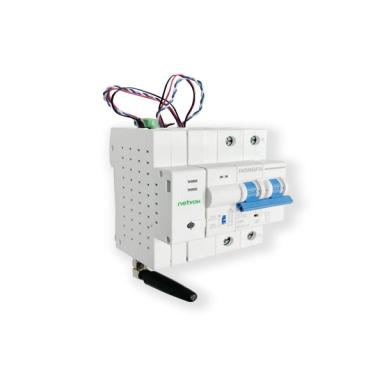

Netvox RP02
Official decoderProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 6

Payload (hex)

01 9C 01 13 09 08 00 19 01 09 00

Decoded (JSON)

{
  "Device": "RP02",
  "BreakerRS485Addr": 19,
  "BreakerType": 9,
  "BreakerProtectStatusBits_1P": 8,
  "AlarmStatusBits_1P": 0,
  "Pre_TripStatusBits_1P": 25,
  "TripStatusBits_1P": 1,
  "HandOrAutoControlAndSelfTestStatus": 9
}
FieldValue
DeviceRP02
BreakerRS485Addr19
BreakerType9
BreakerProtectStatusBits_1P8
AlarmStatusBits_1P0
Pre_TripStatusBits_1P25
TripStatusBits_1P1
HandOrAutoControlAndSelfTestStatus9

Example 2 · fPort 6

Payload (hex)

01 9C 02 13 09 09 00 10 01 08 02

Decoded (JSON)

{
  "Device": "RP02",
  "BreakerRS485Addr": 19,
  "Current": 2313,
  "Voltage": 16,
  "Power": 264,
  "Temperature": 2
}
FieldValue
DeviceRP02
BreakerRS485Addr19
Current2313
Voltage16
Power264
Temperature2

Specifications

Manufacturer
Netvox
Model
RP02
Type
Level and distance sensor
Measures
current, voltage
Operating temperature
-20 … 55 °C
LoRaWAN regions
EU863-870, AS923, US902-928, AU915-928, KR920-923, IN865-867, CN470-510

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.

See your Netvox RP02 on a dashboard

Start a free trial, add the device with its DevEUI and get dashboards and alarms from its next uplink.

Talk to us

Frequently asked questions

Device facts and decoder examples: The Things Network Device Repository (Apache-2.0) · commit 7693223, imported 2026-10-05.
