Indoor air quality sensor

Netvox R72615A LoRaWAN decoder and payload format

The Netvox R72615A is a LoRaWAN indoor air quality sensor that reports CO2, temperature and humidity. It runs on a 8 ER14505 lithium battery and it works from -20 to 55 °C.

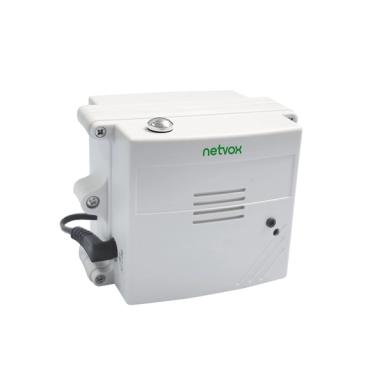

Netvox R72615A
Official decoderDatasheetProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 6

Payload (hex)

01 09 01 48 00 64 00 C8 02 BC 00

Decoded (JSON)

{
  "Device": "R726 Series",
  "Volt": 7.2,
  "PM1_0": 100,
  "PM2_5": 200,
  "PM10": 700
}
FieldValue
DeviceR726 Series
Volt7.2
PM1_0100
PM2_5200
PM10700

Example 2 · fPort 6

Payload (hex)

01 09 02 48 00 64 00 C8 02 BC 00

Decoded (JSON)

{
  "Device": "R726 Series",
  "Volt": 7.2,
  "PM1_0": 100,
  "PM2_5": 200,
  "PM10": 700
}
FieldValue
DeviceR726 Series
Volt7.2
PM1_0100
PM2_5200
PM10700

Specifications

Manufacturer
Netvox
Model
R72615A
Type
Indoor air quality sensor
Measures
CO2, temperature, humidity
Battery
8 ER14505 lithium batteries
Operating temperature
-20 … 55 °C
LoRaWAN regions
EU863-870, AS923, US902-928, AU915-928, KR920-923, IN865-867, CN470-510

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.

See your Netvox R72615A on a dashboard

Start a free trial, add the device with its DevEUI and get dashboards and alarms from its next uplink.

Talk to us

Frequently asked questions

Device facts and decoder examples: The Things Network Device Repository (Apache-2.0) · commit 7693223, imported 2026-10-05.
