Current and energy meter

MCCI Model 4811 LoRaWAN decoder and payload format

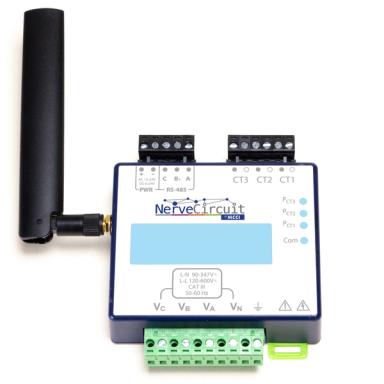

The MCCI Model 4811 is a LoRaWAN current and energy meter that reports power, voltage and current. It works from -40 to 80 °C.

MCCI Model 4811
Official decoderDatasheetProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 1

Payload (hex)

19 1B 35 34 0E 00 00 00 76 00 00 01 61 42 92 92 89

Decoded (JSON)

{
  "ModbusError": 0,
  "boot": 14,
  "energySourced": 35300,
  "energyUsed": 11800,
  "mainDemand": 73.28620147705078,
  "vBat": 3.3251953125
}
FieldValue
ModbusError0
boot14
energySourced35300
energyUsed11800
mainDemand73.28620147705078
vBat3.3251953125

Example 2 · fPort 1

Payload (hex)

19 1B 35 34 0E 00 00 00 76 00 00 01 61 00 00 00 01

Decoded (JSON)

{
  "ModbusError": 0,
  "boot": 14,
  "energySourced": 35300,
  "energyUsed": 11800,
  "mainDemand": 1.401298464324817e-45,
  "vBat": 3.3251953125
}
FieldValue
ModbusError0
boot14
energySourced35300
energyUsed11800
mainDemand1.401298464324817e-45
vBat3.3251953125

Specifications

Manufacturer
MCCI
Model
Model 4811
Type
Current and energy meter
Measures
power, voltage, current
Operating temperature
-40 … 80 °C
LoRaWAN regions
EU863-870, US902-928, AU915-928, AS923, KR920-923, IN865-867

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.

See your MCCI Model 4811 on a dashboard

Start a free trial, add the device with its DevEUI and get dashboards and alarms from its next uplink.

Talk to us

Frequently asked questions

Device facts and decoder examples: The Things Network Device Repository (Apache-2.0) · commit 7693223, imported 2026-10-05.
