Level and distance sensor

Dingtek DF702 LoRaWAN decoder and payload format

The Dingtek DF702 is a LoRaWAN level and distance sensor that reports level, GPS position and temperature. It is rated IP66, it runs on a replaceable ER26500 battery and it works from -20 to 70 °C.

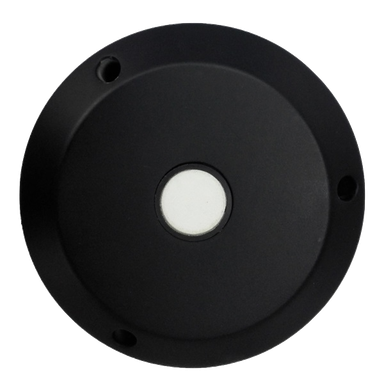

Dingtek DF702
Official decoderProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 3

Payload (hex)

80 00 01 03 19 01 04 18 01 1E 4B 1E 00 00 00 00 00 00 00 00 00 00 00 00 81

Decoded (JSON)

{
  "periodic_interval": "24 hours",
  "detection_interval": "1 minutes",
  "full_alarm_threshold": "30 cm",
  "fire_alarm_threshold": "75 ℃",
  "tilt_alarm_threshold": "30 °",
  "tilt_enable": false,
  "ultrasonic_range": "2000 mm"
}
FieldValue
periodic_interval24 hours
detection_interval1 minutes
full_alarm_threshold30 cm
fire_alarm_threshold75 ℃
tilt_alarm_threshold30 °
tilt_enablefalse
ultrasonic_range2000 mm

Example 2 · fPort 3

Payload (hex)

80 00 01 01 19 07 D0 01 CD 03 E9 42 EF 27 20 42 19 00 00 00 00 00 00 00 81

Decoded (JSON)

{
  "level": "2000 mm",
  "longitude": "116.507430",
  "latitude": "40.038999",
  "full": false,
  "fire": false,
  "tilt": false,
  "battery": false,
  "angle": "0 °",
  "temperature": "25 ℃"
}
FieldValue
level2000 mm
longitude116.507430
latitude40.038999
fullfalse
firefalse
tiltfalse
batteryfalse
angle0 °
temperature25 ℃

Specifications

Manufacturer
Dingtek
Model
DF702
Type
Level and distance sensor
Measures
level, GPS position, temperature
Protection
IP66
Battery
ER26500 (replaceable)
Operating temperature
-20 … 70 °C
LoRaWAN regions
EU863-870, US902-928, AU915-928, AS923, IN865-867, CN470-510, RU864-870

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.
