comtac LPN KM LoRaWAN decoder and payload format

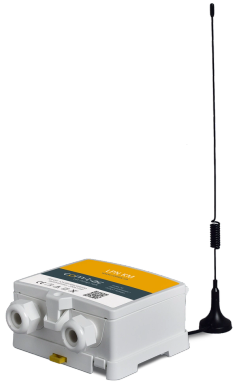

The comtac LPN KM is a LoRaWAN I/O and Modbus controller that reports digital inputs, temperature and button presses. It is rated IP65, it runs on a replaceable LiMn02 5Ah Backup battery and it works from -25 to 60 °C.
Payload format
An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.
Example 1 · fPort 20
Payload (hex)
10 00 0C C3 5F EE 66 01 11 40 00 00 12 40 00 00Decoded (JSON)
{
"payloadLength": 16,
"port": 20,
"portFunction": "DI_DATA",
"decoder": {
"info": "TTN/TTI",
"version": "000"
},
"payload": {
"data": {
"digitalInputs": [
{
"cot": {
"cyclic": false,
"event": false,
"interrogation": true
},
"info": {
"id": 1,
"type": "singlePointInfo"
},
"status": {
"blocked": false,
"state": 0
},
"timestamp": {
"string": "Fri, 01 Jan 2021 00:00:01 GMT",
"unix": 1609459201
}
},
{
"cot": {
"cyclic": false,
"event": false,
"interrogation": true
},
"info": {
"id": 2,
"type": "singlePointInfo"
},
"status": {
"blocked": false,
"state": 0
},
"timestamp": {
"string": "Fri, 01 Jan 2021 00:00:01 GMT",
"unix": 1609459201
}
}
]
},
"device": {
"batteryLevel": "77%",
"deviceStatus": {
"batteryPowered": true,
"bufferOverflow": false,
"configurationError": false,
"confirmationTimeout": false,
"deviceRestarted": false,
"lowSupplyVoltage": false,
"timeSynced": true,
"txCreditsConsumed": false
},
"info": {
"deviceDesignation": "LPN-KM",
"deviceId": 16,
"deviceManufacturer": "comtac AG",
"deviceVersion": 0
}
}
}
}| Field | Value |
|---|---|
| payloadLength | 16 |
| port | 20 |
| portFunction | DI_DATA |
| decoder.info | TTN/TTI |
| decoder.version | 000 |
| payload.data.digitalInputs | [{"cot":{"cyclic":false,"event":false,"interrogation":true},"info":{"id":1,"type":"singlePointInfo"},"status":{"blocked":false,"state":0},"timestamp":{"string":"Fri, 01 Jan 2021 00:00:01 GMT","unix":1609459201}},{"cot":{"cyclic":false,"event":false,"interrogation":true},"info":{"id":2,"type":"singlePointInfo"},"status":{"blocked":false,"state":0},"timestamp":{"string":"Fri, 01 Jan 2021 00:00:01 GMT","unix":1609459201}}] |
| payload.device.batteryLevel | 77% |
| payload.device.deviceStatus.batteryPowered | true |
| payload.device.deviceStatus.bufferOverflow | false |
| payload.device.deviceStatus.configurationError | false |
| payload.device.deviceStatus.confirmationTimeout | false |
| payload.device.deviceStatus.deviceRestarted | false |
| payload.device.deviceStatus.lowSupplyVoltage | false |
| payload.device.deviceStatus.timeSynced | true |
| payload.device.deviceStatus.txCreditsConsumed | false |
| payload.device.info.deviceDesignation | LPN-KM |
| payload.device.info.deviceId | 16 |
| payload.device.info.deviceManufacturer | comtac AG |
| payload.device.info.deviceVersion | 0 |
Example 2 · fPort 3
Payload (hex)
10 00 00 00 07 5F EE 6A F0 00 FF FFDecoded (JSON)
{
"payloadLength": 12,
"port": 3,
"portFunction": "FIXED_DATA",
"decoder": {
"info": "TTN/TTI",
"version": "000"
},
"payload": {
"data": {
"config": {
"counterValues": true,
"digitalInputs": true,
"timestamp": true
},
"counterValues": [],
"digitalInputs": "ffff",
"timestamp": {
"string": "Fri, 01 Jan 2021 00:21:04 GMT",
"unix": 1609460464
}
},
"device": {
"batteryLevel": "external",
"deviceStatus": {
"batteryPowered": false,
"bufferOverflow": false,
"configurationError": false,
"confirmationTimeout": false,
"deviceRestarted": false,
"lowSupplyVoltage": false,
"timeSynced": false,
"txCreditsConsumed": false
},
"info": {
"deviceDesignation": "LPN-KM",
"deviceId": 16,
"deviceManufacturer": "comtac AG",
"deviceVersion": 0
}
}
}
}| Field | Value |
|---|---|
| payloadLength | 12 |
| port | 3 |
| portFunction | FIXED_DATA |
| decoder.info | TTN/TTI |
| decoder.version | 000 |
| payload.data.config.counterValues | true |
| payload.data.config.digitalInputs | true |
| payload.data.config.timestamp | true |
| payload.data.counterValues | [] |
| payload.data.digitalInputs | ffff |
| payload.data.timestamp.string | Fri, 01 Jan 2021 00:21:04 GMT |
| payload.data.timestamp.unix | 1609460464 |
| payload.device.batteryLevel | external |
| payload.device.deviceStatus.batteryPowered | false |
| payload.device.deviceStatus.bufferOverflow | false |
| payload.device.deviceStatus.configurationError | false |
| payload.device.deviceStatus.confirmationTimeout | false |
| payload.device.deviceStatus.deviceRestarted | false |
| payload.device.deviceStatus.lowSupplyVoltage | false |
| payload.device.deviceStatus.timeSynced | false |
| payload.device.deviceStatus.txCreditsConsumed | false |
| payload.device.info.deviceDesignation | LPN-KM |
| payload.device.info.deviceId | 16 |
| payload.device.info.deviceManufacturer | comtac AG |
| payload.device.info.deviceVersion | 0 |
Specifications
- Manufacturer
- comtac
- Model
- LPN KM
- Type
- I/O and Modbus controller
- Measures
- digital inputs, temperature, button presses
- Protection
- IP65
- Battery
- LiMn02 5Ah Backup battery (replaceable)
- Operating temperature
- -25 … 60 °C
- LoRaWAN regions
- EU863-870
Connect it to Cloud Studio IoT
- 1
Register the device in your network server
Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.
- 2
Apply the decoder
In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.
- 3
Connect the network server to Cloud Studio IoT
Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.
- 4
Build dashboards and alarms
The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.
See your comtac LPN KM on a dashboard
Start a free trial, add the device with its DevEUI and get dashboards and alarms from its next uplink.
