Indoor air quality sensor

Atomsenses ES100 LoRaWAN decoder and payload format

The Atomsenses ES100 is a LoRaWAN indoor air quality sensor that reports CO2, temperature, humidity, TVOC, PM2.5, PM10, CO, light, sound level and pressure. It is rated IP30, it runs on a replaceable ER14505 battery and it works from -20 to 60 °C.

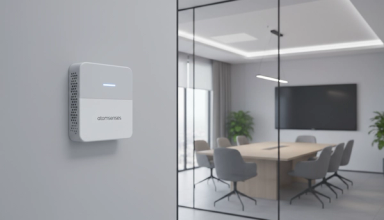

Atomsenses ES100
Official decoderProduct page

Payload format

An uplink from the device as it arrives at the network server, and what the official decoder returns for it. Examples come from the decoder's own test cases.

Example 1 · fPort 2

Payload (hex)

01 41 CC 00 00 02 42 34 00 00 07 00 00 03 20

Decoded (JSON)

{
  "Temperature": 25.5,
  "Humidity": 45,
  "CO2": 800
}
FieldValue
Temperature25.5
Humidity45
CO2800

Specifications

Manufacturer
Atomsenses
Model
ES100
Type
Indoor air quality sensor
Measures
CO2, temperature, humidity, TVOC, PM2.5, PM10, CO, light, sound level, pressure
Protection
IP30
Battery
ER14505 (replaceable)
Operating temperature
-20 … 60 °C
LoRaWAN regions
EU863-870, US902-928, AU915-928, AS923, CN470-510, KR920-923, IN865-867, RU864-870

Connect it to Cloud Studio IoT

  1. 1

    Register the device in your network server

    Add it to The Things Stack, ChirpStack, Actility ThingPark or LORIOT with its DevEUI, JoinEUI and AppKey and the frequency plan of your region.

  2. 2

    Apply the decoder

    In The Things Stack, pick the model from the device repository and its decoder is applied for you. In ChirpStack v4, paste the official decoder as the device profile's JavaScript codec.

  3. 3

    Connect the network server to Cloud Studio IoT

    Set up the integration once per network server; every device registered there then reaches Cloud Studio IoT with its decoded values.

  4. 4

    Build dashboards and alarms

    The decoded fields become device variables for dashboards, alarms by email or SMS, and scheduled reports.
